Grafana Dashboards

Ingress-nginx supports a rich collection of prometheus metrics. If you have prometheus and grafana installed on your cluster then prometheus will already be scraping this data due to the scrape annotation on the deployment.

This folder contains two dashboards that you can import.

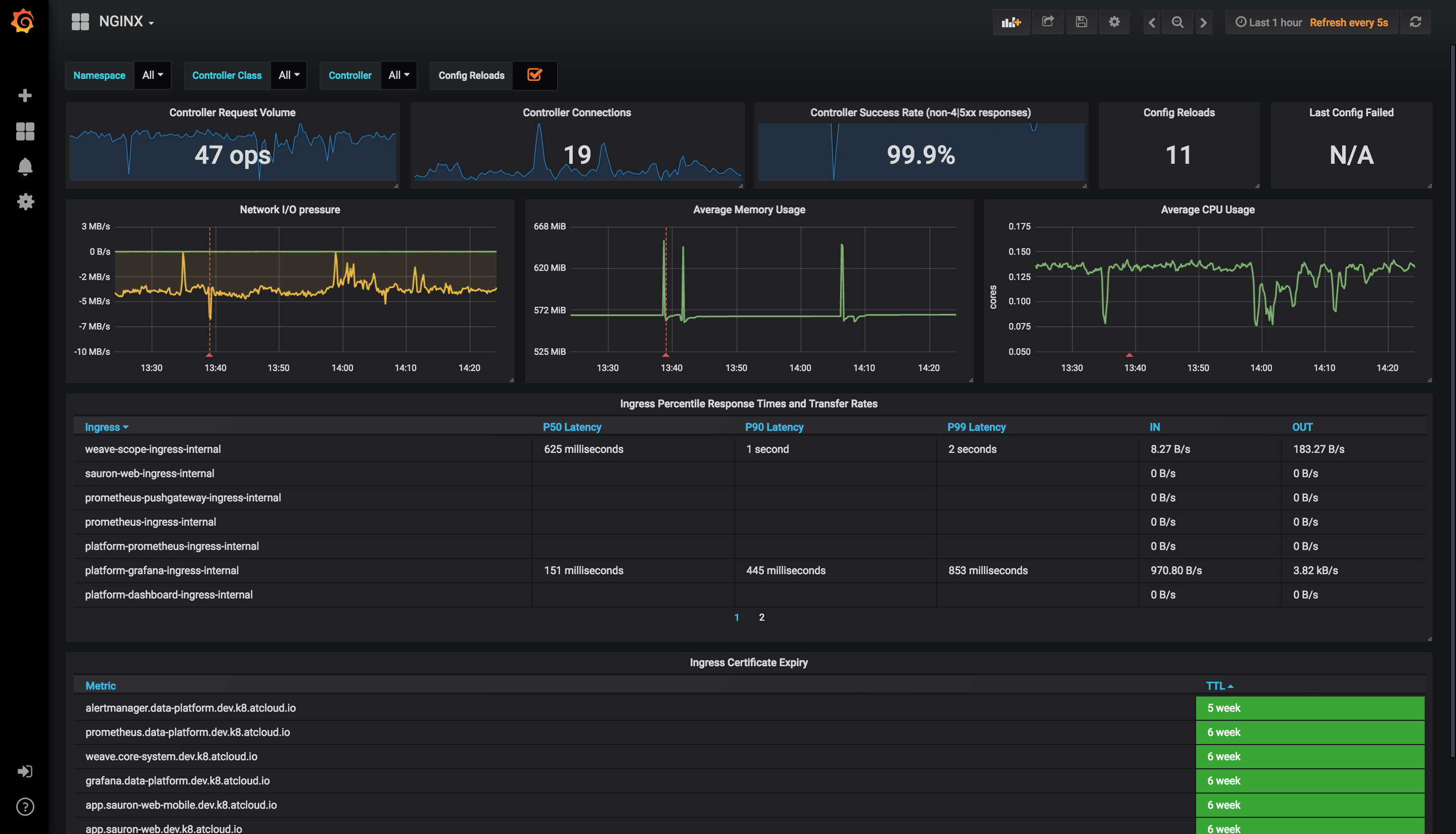

1. NGINX Ingress Controller

Features

• Ability to filter by Namespace, Controller Class and Controller
• Visibility of Request Volume, connections, success rates, config reloads and configs out of sync.
• Network IO pressure, memory and CPU use
• Ingress P50, P95 and P99 percentile response times with IN/OUT throughput
• SSL certificate expiry
• Annotational overlays to show when config reloads happened

Requirements

• Grafana v5.2.0 (or newer)

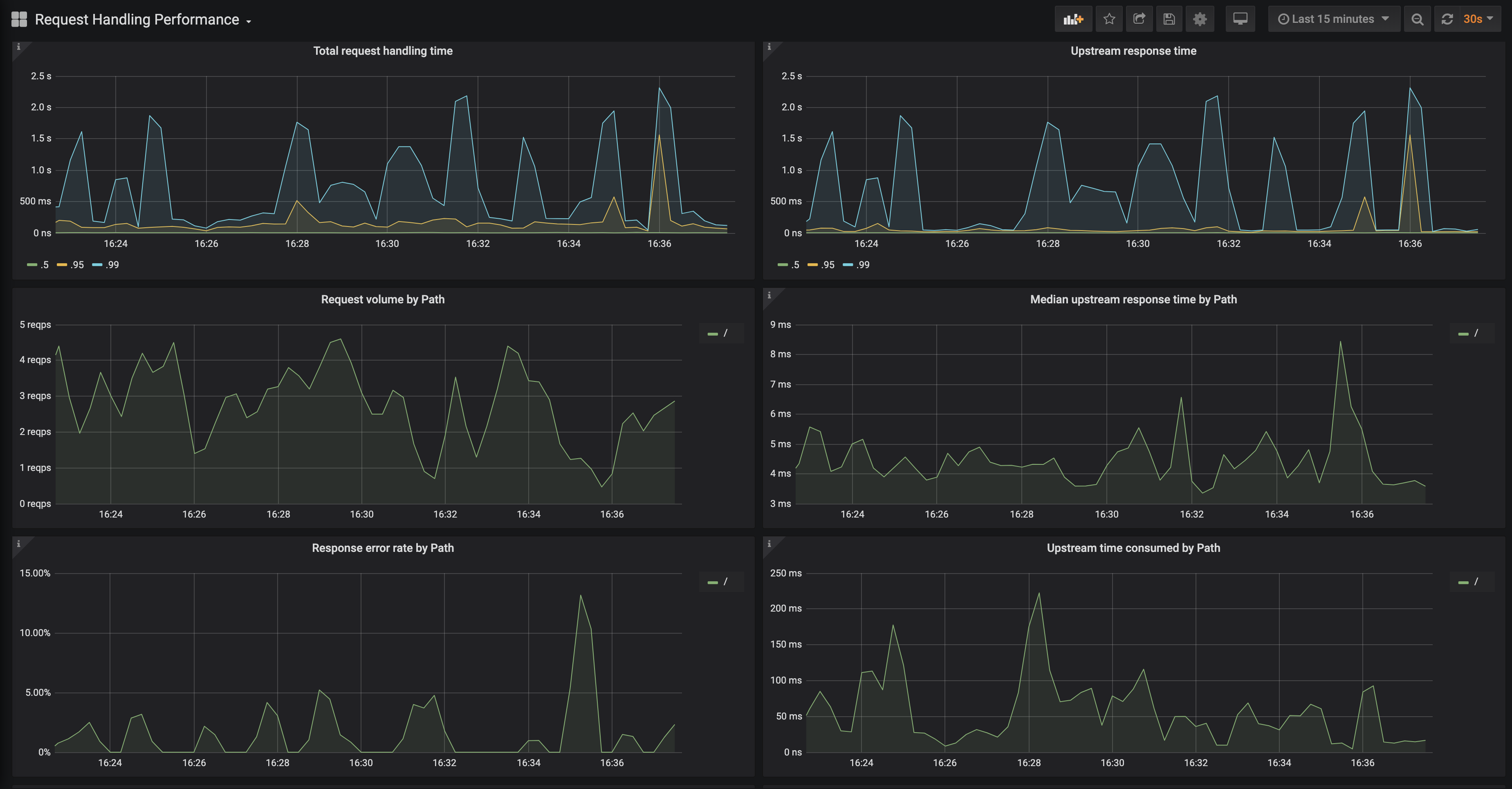

2. Request Handling Performance

Features

• Ability to filter by Ingress
• P50, P95 and P99 percentile of total request and upstream response times
• Request volume by path
• Error volume and error rate by path
• Average response time by path
• ...and more

Requirements

• Grafana v6.6.0 (or newer)
