External OAUTH Authentication

Overview

The auth-url and auth-signin annotations allow you to use an external authentication provider to protect your Ingress resources.

!!! Important This annotation requires nginx-ingress-controller v0.9.0 or greater.)

Key Detail

This functionality is enabled by deploying multiple Ingress objects for a single host. One Ingress object has no special annotations and handles authentication.

Other Ingress objects can then be annotated in such a way that require the user to authenticate against the first Ingress's endpoint, and can redirect 401s to the same endpoint.

Sample:

...
metadata:
  name: application
  annotations:
    nginx.ingress.kubernetes.io/auth-url: "https://$host/oauth2/auth"
    nginx.ingress.kubernetes.io/auth-signin: "https://$host/oauth2/start?rd=$escaped_request_uri"
...

Example: OAuth2 Proxy + Kubernetes-Dashboard

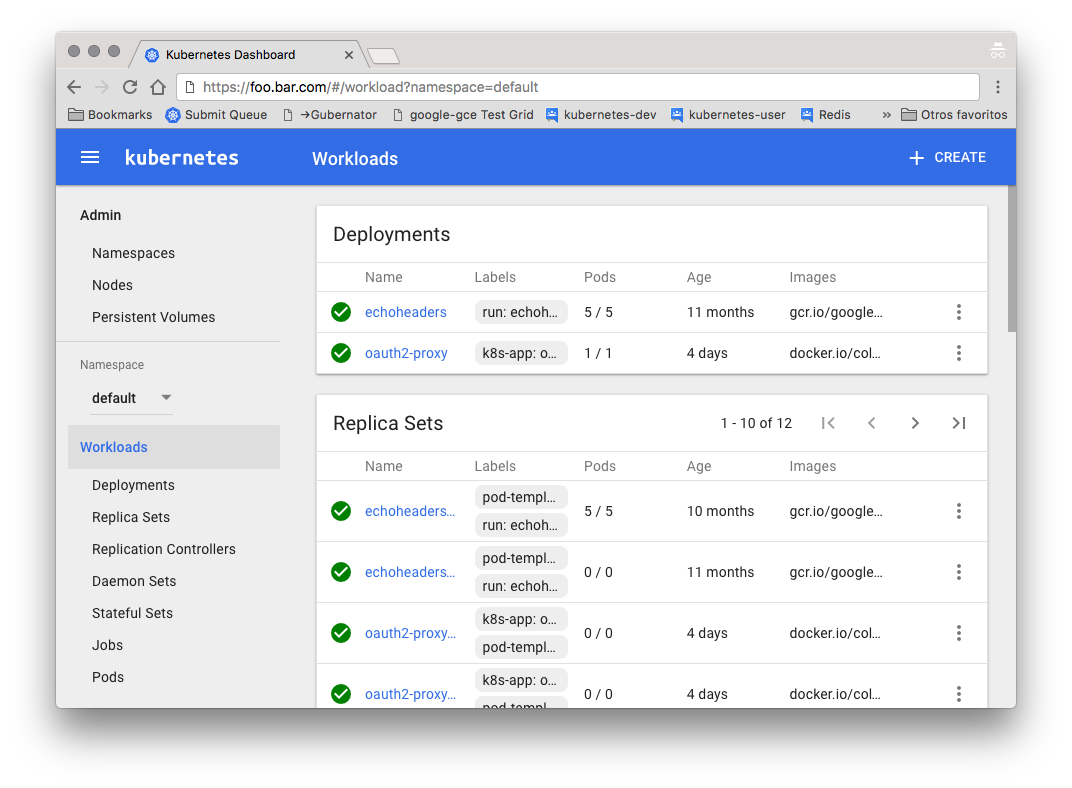

This example will show you how to deploy oauth2_proxy into a Kubernetes cluster and use it to protect the Kubernetes Dashboard using github as oAuth2 provider

Prepare

1. Install the kubernetes dashboard

kubectl create -f https://raw.githubusercontent.com/kubernetes/kops/master/addons/kubernetes-dashboard/v1.10.1.yaml

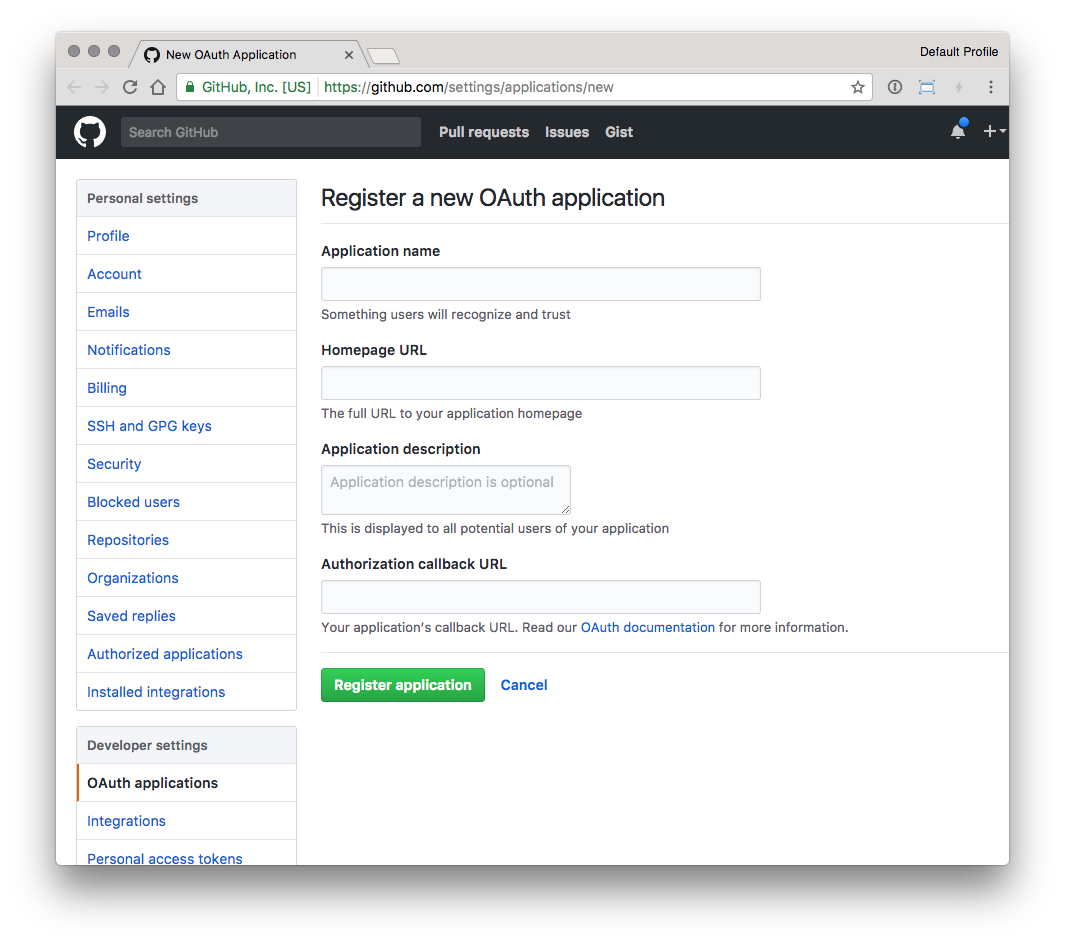

2. Create a custom Github OAuth application

• Homepage URL is the FQDN in the Ingress rule, like https://foo.bar.com
• Authorization callback URL is the same as the base FQDN plus /oauth2/callback, like https://foo.bar.com/oauth2/callback

3. Configure oauth2_proxy values in the file oauth2-proxy.yaml with the values:

• OAUTH2_PROXY_CLIENT_ID with the github <Client ID>
• OAUTH2_PROXY_CLIENT_SECRET with the github <Client Secret>
• OAUTH2_PROXY_COOKIE_SECRET with value of python -c 'import os,base64; print(base64.b64encode(os.urandom(16)).decode("ascii"))'

4. Customize the contents of the file dashboard-ingress.yaml:

Replace __INGRESS_HOST__ with a valid FQDN and __INGRESS_SECRET__ with a Secret with a valid SSL certificate.

5. Deploy the oauth2 proxy and the ingress rules running:

$ kubectl create -f oauth2-proxy.yaml,dashboard-ingress.yaml

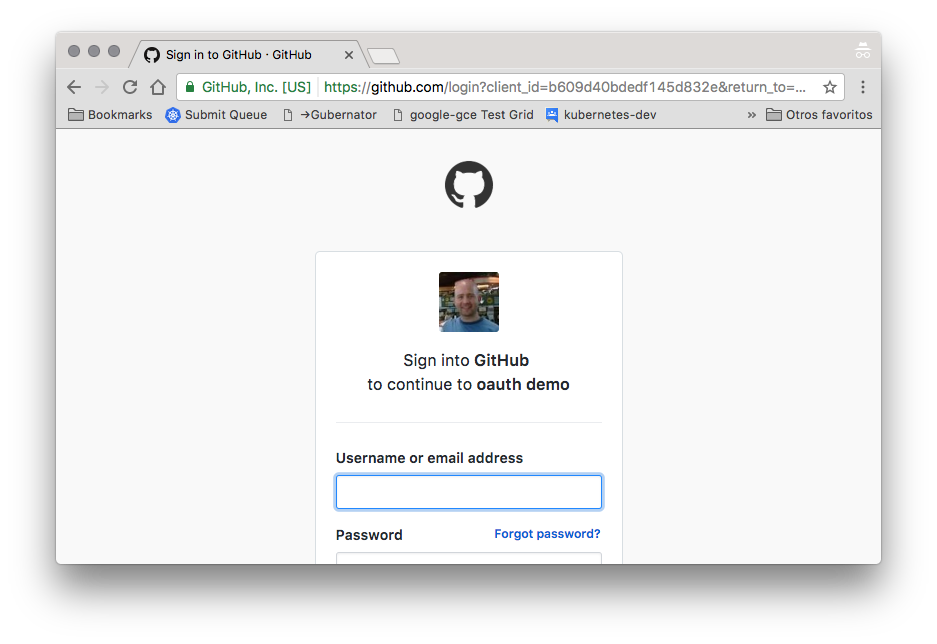

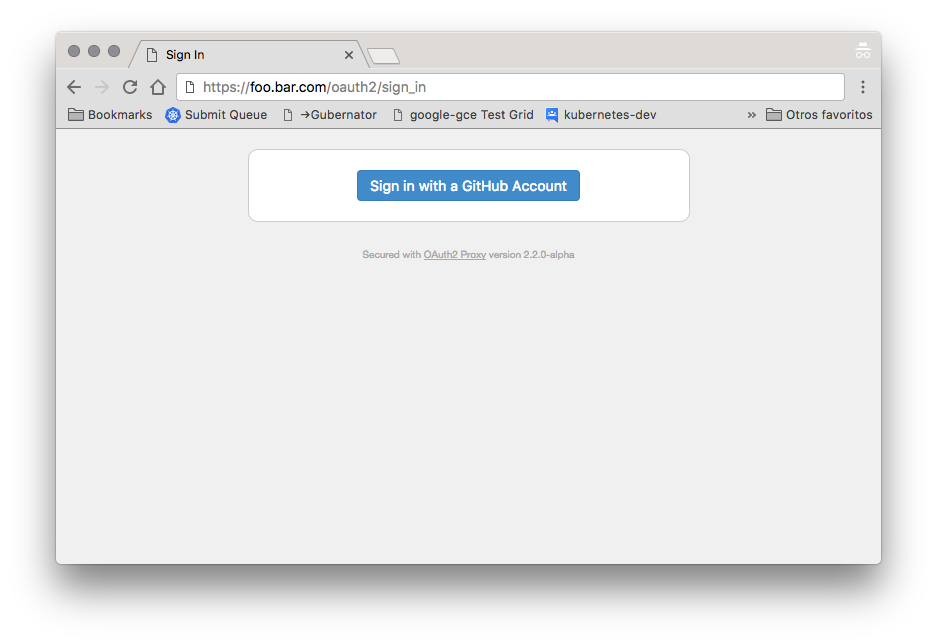

Test the oauth integration accessing the configured URL, like https://foo.bar.com
