Grafana Dashboards

Ingress-nginx supports a rich collection of prometheus metrics. If you have prometheus and grafana installed on your cluster then prometheus will already be scraping this data due to the scrape annotation on the deployment.

This folder contains two dashboards that you can import.

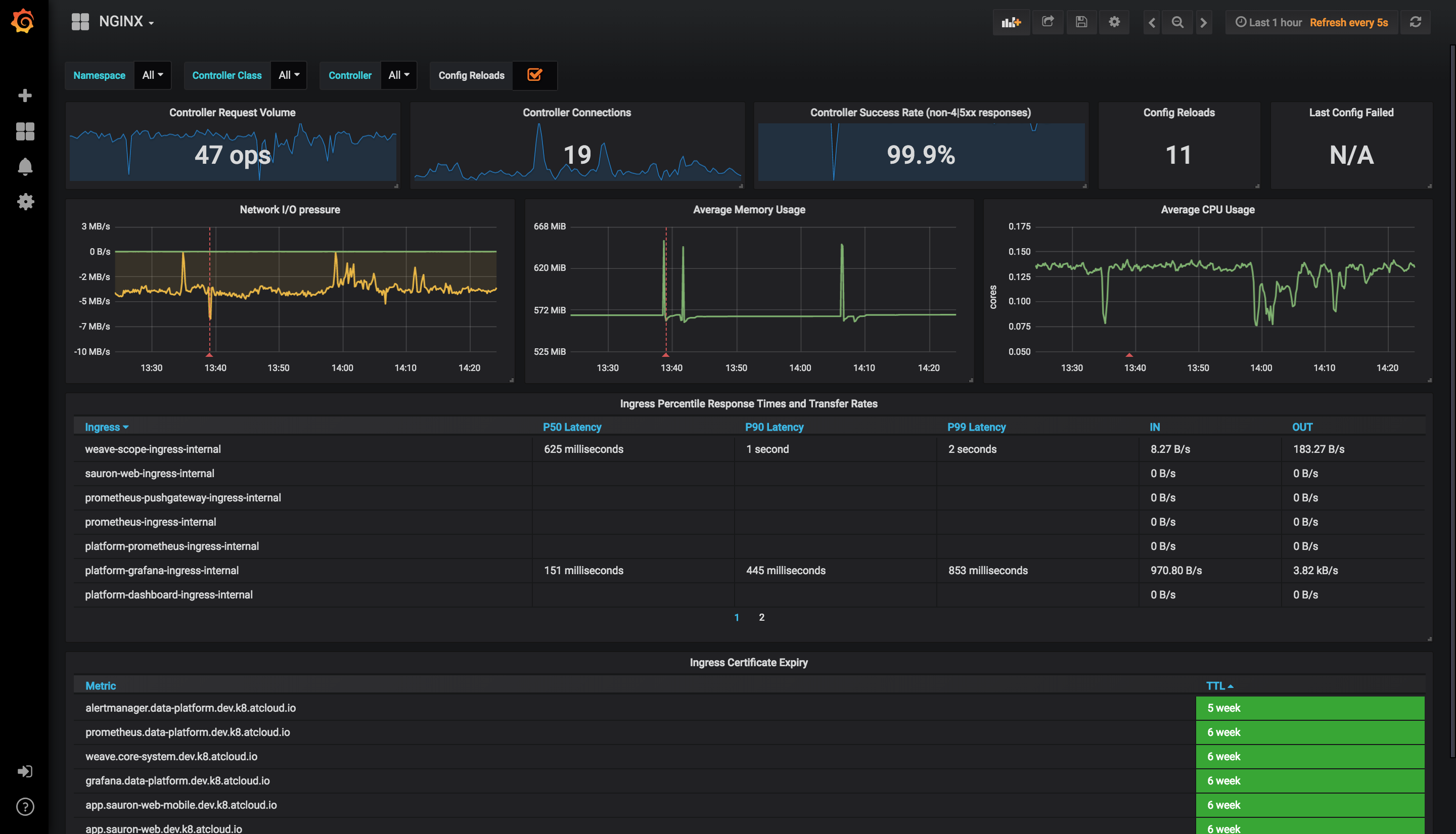

1. NGINX Ingress Controller

Features

Ability to filter by Namespace, Controller Class and Controller
Visibility of Request Volume, connections, success rates, config reloads and configs out of sync.
Network IO pressure, memory and CPU use
Ingress P50, P95 and P99 percentile response times with IN/OUT throughput
SSL certificate expiry
Annotational overlays to show when config reloads happened

Requirements

Grafana v5.2.0 (or newer)

2. Request Handling Performance

Features

Ability to filter by Ingress
P50, P95 and P99 percentile of total request and upstream response times
Request volume by path
Error volume and error rate by path
Average response time by path
...and more

Requirements

Grafana v6.6.0 (or newer)
