title	weight
CNOE	4

• https://cnoe.io/docs/intro

The goal for the CNOE framework is to bring together a cohort of enterprises operating at the same scale so that they can navigate their operational technology decisions together, de-risk their tooling bets, coordinate contribution, and offer guidance to large enterprises on which CNCF technologies to use together to achieve the best cloud efficiencies.

Aussprache

• Englisch Kuh.noo,
• also 'Kanu' im Deutschen

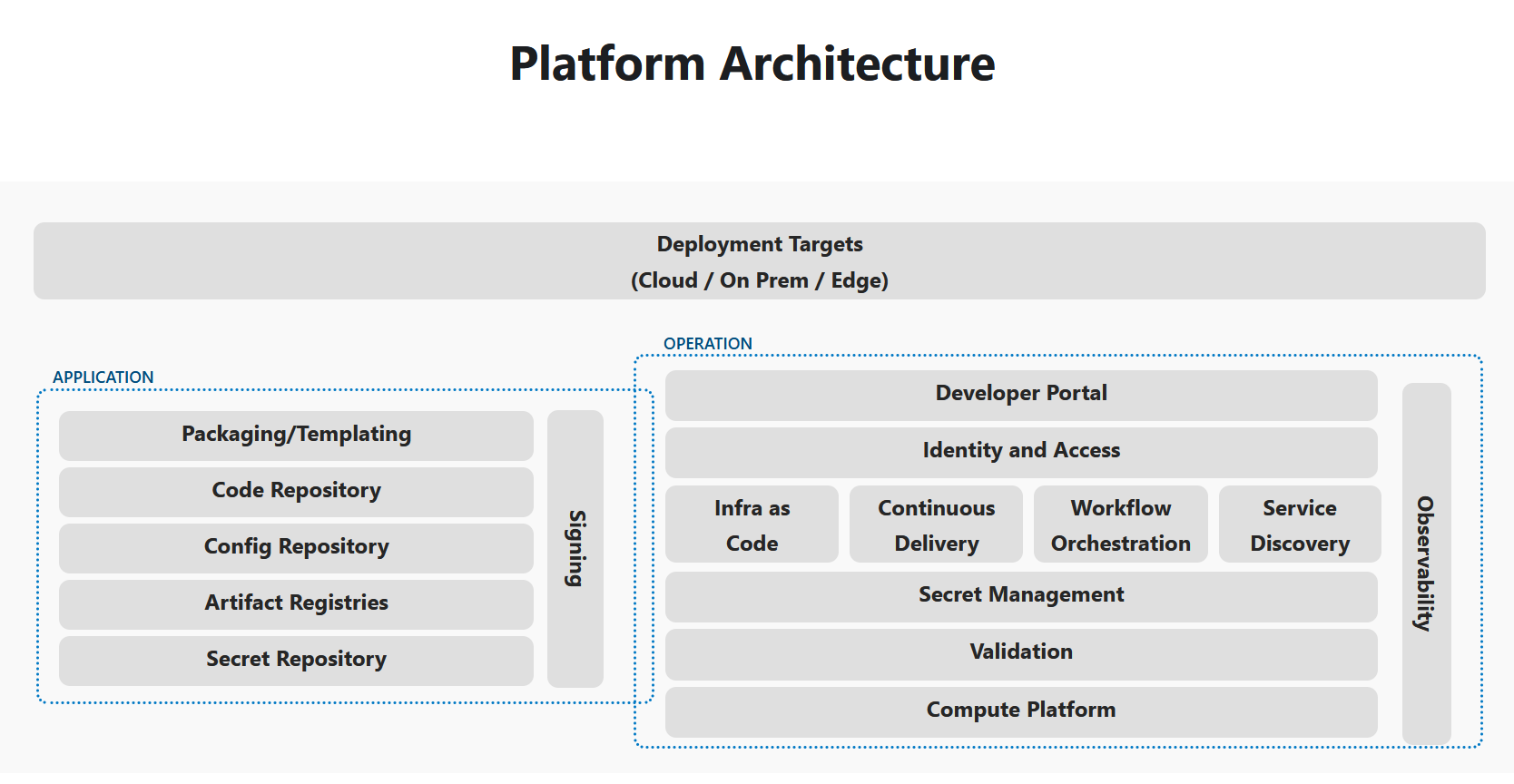

Architecture

Run the CNOEs reference implementation

See https://cnoe.io/docs/reference-implementation/integrations/reference-impl:

# in a local terminal with docker and kind
idpbuilder create --use-path-routing  --log-level debug --package-dir https://github.com/cnoe-io/stacks//ref-implementation

Output

time=2024-08-05T14:48:33.348+02:00 level=INFO msg="Creating kind cluster" logger=setup
time=2024-08-05T14:48:33.371+02:00 level=INFO msg="Runtime detected" logger=setup provider=docker
########################### Our kind config ############################
# Kind kubernetes release images https://github.com/kubernetes-sigs/kind/releases
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
  image: "kindest/node:v1.29.2"
  kubeadmConfigPatches:
  - |
    kind: InitConfiguration
    nodeRegistration:
      kubeletExtraArgs:
        node-labels: "ingress-ready=true"
  extraPortMappings:
  - containerPort: 443
    hostPort: 8443
    protocol: TCP

containerdConfigPatches:
- |-
  [plugins."io.containerd.grpc.v1.cri".registry.mirrors."gitea.cnoe.localtest.me:8443"]
    endpoint = ["https://gitea.cnoe.localtest.me"]
  [plugins."io.containerd.grpc.v1.cri".registry.configs."gitea.cnoe.localtest.me".tls]
    insecure_skip_verify = true

#########################   config end    ############################
time=2024-08-05T14:48:33.394+02:00 level=INFO msg="Creating kind cluster" logger=setup cluster=localdev
time=2024-08-05T14:48:53.680+02:00 level=INFO msg="Done creating cluster" logger=setup cluster=localdev
time=2024-08-05T14:48:53.905+02:00 level=DEBUG+3 msg="Getting Kube config" logger=setup
time=2024-08-05T14:48:53.908+02:00 level=DEBUG+3 msg="Getting Kube client" logger=setup
time=2024-08-05T14:48:53.908+02:00 level=INFO msg="Adding CRDs to the cluster" logger=setup
time=2024-08-05T14:48:53.948+02:00 level=DEBUG+3 msg="crd not yet established, waiting." "crd name"=custompackages.idpbuilder.cnoe.io
time=2024-08-05T14:48:53.954+02:00 level=DEBUG+3 msg="crd not yet established, waiting." "crd name"=custompackages.idpbuilder.cnoe.io
time=2024-08-05T14:48:53.957+02:00 level=DEBUG+3 msg="crd not yet established, waiting." "crd name"=custompackages.idpbuilder.cnoe.io
time=2024-08-05T14:48:53.981+02:00 level=DEBUG+3 msg="crd not yet established, waiting." "crd name"=gitrepositories.idpbuilder.cnoe.io
time=2024-08-05T14:48:53.985+02:00 level=DEBUG+3 msg="crd not yet established, waiting." "crd name"=gitrepositories.idpbuilder.cnoe.io
time=2024-08-05T14:48:54.734+02:00 level=DEBUG+3 msg="Creating controller manager" logger=setup
time=2024-08-05T14:48:54.737+02:00 level=DEBUG+3 msg="Created temp directory for cloning repositories" logger=setup dir=/tmp/idpbuilder-localdev-2865684949
time=2024-08-05T14:48:54.737+02:00 level=INFO msg="Setting up CoreDNS" logger=setup
time=2024-08-05T14:48:54.798+02:00 level=INFO msg="Setting up TLS certificate" logger=setup
time=2024-08-05T14:48:54.811+02:00 level=DEBUG+3 msg="Creating/getting certificate" logger=setup host=cnoe.localtest.me sans="[cnoe.localtest.me *.cnoe.localtest.me]"
time=2024-08-05T14:48:54.825+02:00 level=DEBUG+3 msg="Creating secret for certificate" logger=setup host=cnoe.localtest.me
time=2024-08-05T14:48:54.832+02:00 level=DEBUG+3 msg="Running controllers" logger=setup
time=2024-08-05T14:48:54.833+02:00 level=DEBUG+3 msg="starting manager"
time=2024-08-05T14:48:54.833+02:00 level=INFO msg="Creating localbuild resource" logger=setup
time=2024-08-05T14:48:54.834+02:00 level=INFO msg="Starting EventSource" controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage source="kind source: *v1alpha1.CustomPackage"
time=2024-08-05T14:48:54.834+02:00 level=INFO msg="Starting EventSource" controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository source="kind source: *v1alpha1.GitRepository"
time=2024-08-05T14:48:54.834+02:00 level=INFO msg="Starting Controller" controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage
time=2024-08-05T14:48:54.834+02:00 level=INFO msg="Starting Controller" controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository
time=2024-08-05T14:48:54.834+02:00 level=INFO msg="Starting EventSource" controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild source="kind source: *v1alpha1.Localbuild"
time=2024-08-05T14:48:54.834+02:00 level=INFO msg="Starting Controller" controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild
time=2024-08-05T14:48:54.937+02:00 level=INFO msg="Starting workers" controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository "worker count"=1
time=2024-08-05T14:48:54.937+02:00 level=INFO msg="Starting workers" controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage "worker count"=1
time=2024-08-05T14:48:54.937+02:00 level=INFO msg="Starting workers" controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild "worker count"=1
time=2024-08-05T14:48:56.863+02:00 level=DEBUG+3 msg=Reconciling controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild Localbuild.name=localdev namespace="" name=localdev reconcileID=cc0e5b9d-4952-4fd1-9d62-6d9821f180be resource=/localdev
time=2024-08-05T14:48:56.863+02:00 level=DEBUG+3 msg="Create or update namespace" controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild Localbuild.name=localdev namespace="" name=localdev reconcileID=cc0e5b9d-4952-4fd1-9d62-6d9821f180be resource="&Namespace{ObjectMeta:{idpbuilder-localdev      0 0001-01-01 00:00:00 +0000 UTC <nil> <nil> map[] map[] [] [] []},Spec:NamespaceSpec{Finalizers:[],},Status:NamespaceStatus{Phase:,Conditions:[]NamespaceCondition{},},}"
time=2024-08-05T14:48:56.983+02:00 level=DEBUG+3 msg="installing core packages" controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild Localbuild.name=localdev namespace="" name=localdev reconcileID=cc0e5b9d-4952-4fd1-9d62-6d9821f180be
time=2024-08-05T14:

...

time=2024-08-05T14:51:04.166+02:00 level=INFO msg="Stopping and waiting for webhooks"
time=2024-08-05T14:51:04.166+02:00 level=INFO msg="Stopping and waiting for HTTP servers"
time=2024-08-05T14:51:04.166+02:00 level=INFO msg="Wait completed, proceeding to shutdown the manager"

########################### Finished Creating IDP Successfully! ############################


Can Access ArgoCD at https://cnoe.localtest.me:8443/argocd
Username: admin
Password can be retrieved by running: idpbuilder get secrets -p argocd

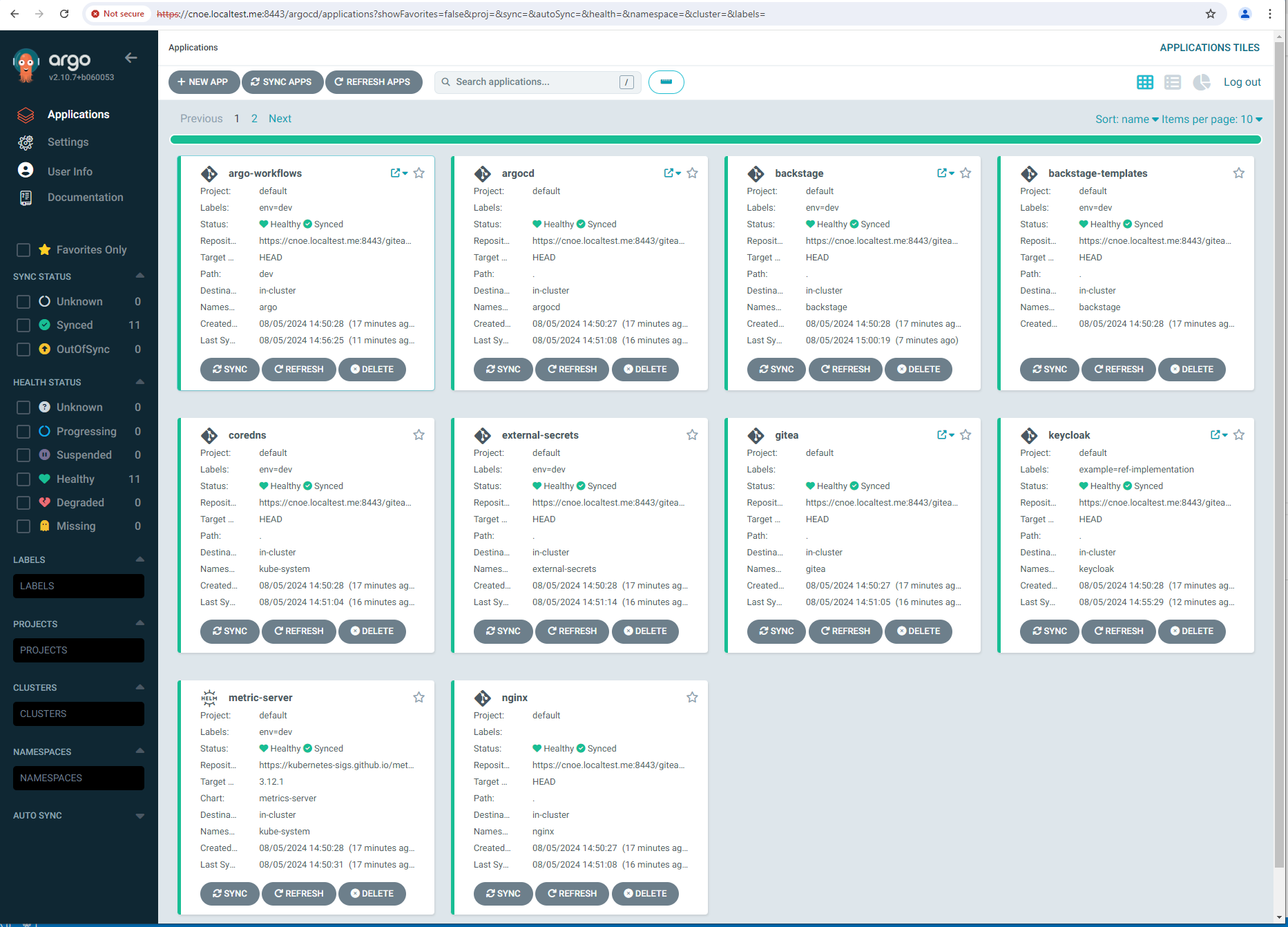

Outcome

Nach ca. 10 minuten sind alle applications ausgerollt (am längsten dauert Backstage):

stl@ubuntu-vpn:~$ kubectl get applications -A
NAMESPACE   NAME                  SYNC STATUS   HEALTH STATUS
argocd      argo-workflows        Synced        Healthy
argocd      argocd                Synced        Healthy
argocd      backstage             Synced        Healthy
argocd      included-backstage-templates   Synced        Healthy
argocd      coredns               Synced        Healthy
argocd      external-secrets      Synced        Healthy
argocd      gitea                 Synced        Healthy
argocd      keycloak              Synced        Healthy
argocd      metric-server         Synced        Healthy
argocd      nginx                 Synced        Healthy
argocd      spark-operator        Synced        Healthy
stl@ubuntu-vpn:~$ idpbuilder get secrets
---------------------------
Name: argocd-initial-admin-secret
Namespace: argocd
Data:
  password : sPMdWiy0y0jhhveW
  username : admin
---------------------------
Name: gitea-credential
Namespace: gitea
Data:
  password : |iJ+8gG,(Jj?cc*G>%(i'OA7@(9ya3xTNLB{9k'G
  username : giteaAdmin
---------------------------
Name: keycloak-config
Namespace: keycloak
Data:
  KC_DB_PASSWORD : ES-rOE6MXs09r+fAdXJOvaZJ5I-+nZ+hj7zF
  KC_DB_USERNAME : keycloak
  KEYCLOAK_ADMIN_PASSWORD : BBeMUUK1CdmhKWxZxDDa1c5A+/Z-dE/7UD4/
  POSTGRES_DB : keycloak
  POSTGRES_PASSWORD : ES-rOE6MXs09r+fAdXJOvaZJ5I-+nZ+hj7zF
  POSTGRES_USER : keycloak
  USER_PASSWORD : RwCHPvPVMu+fQM4L6W/q-Wq79MMP+3CN-Jeo

login to backstage

login geht mit den Creds, siehe oben:
