🚀 Continuous Integration (CI) Workflow

Our repository includes a Continuous Integration (CI) workflow that runs automatically whenever changes are pushed to the codebase. By leveraging Forgejo and GitHub Actions, we ensure that every update is thoroughly validated, resulting in a reliable and error-free image being delivered to the Forgejo registry.


How It Works

Automatic Trigger on Code Changes

Each time you push a new commit or open a pull request, a CI workflow is initiated. You can monitor these runs by navigating to the Actions tab within your GitHub project.

step 2

Workflow Steps

The CI pipeline consists of several predefined steps designed to ensure quality and security before publishing the final image:

  • 📥 Checkout:

    Retrieves the latest version of the repository to ensure the workflow is working with the most recent code.

  • 📝 Linting (using golangci-lint):

    Analyzes the code for potential issues, formatting errors, or stylistic inconsistencies.

  • 🔑 Docker Login:

    Authenticates with your Docker registry so that the newly built image can be pushed securely.

  • 🔧 Build Application & Image:

    Constructs the application and packages it into a Docker image.

  • 🛡️ Vulnerability Scanning (using trivy):

    Scans the final image for known security vulnerabilities, ensuring any issues are identified and addressed early on.

  • ⬆️ Push Image to Registry:

    Uploads the successfully built image to the Forgejo registry, making it available for deployment.

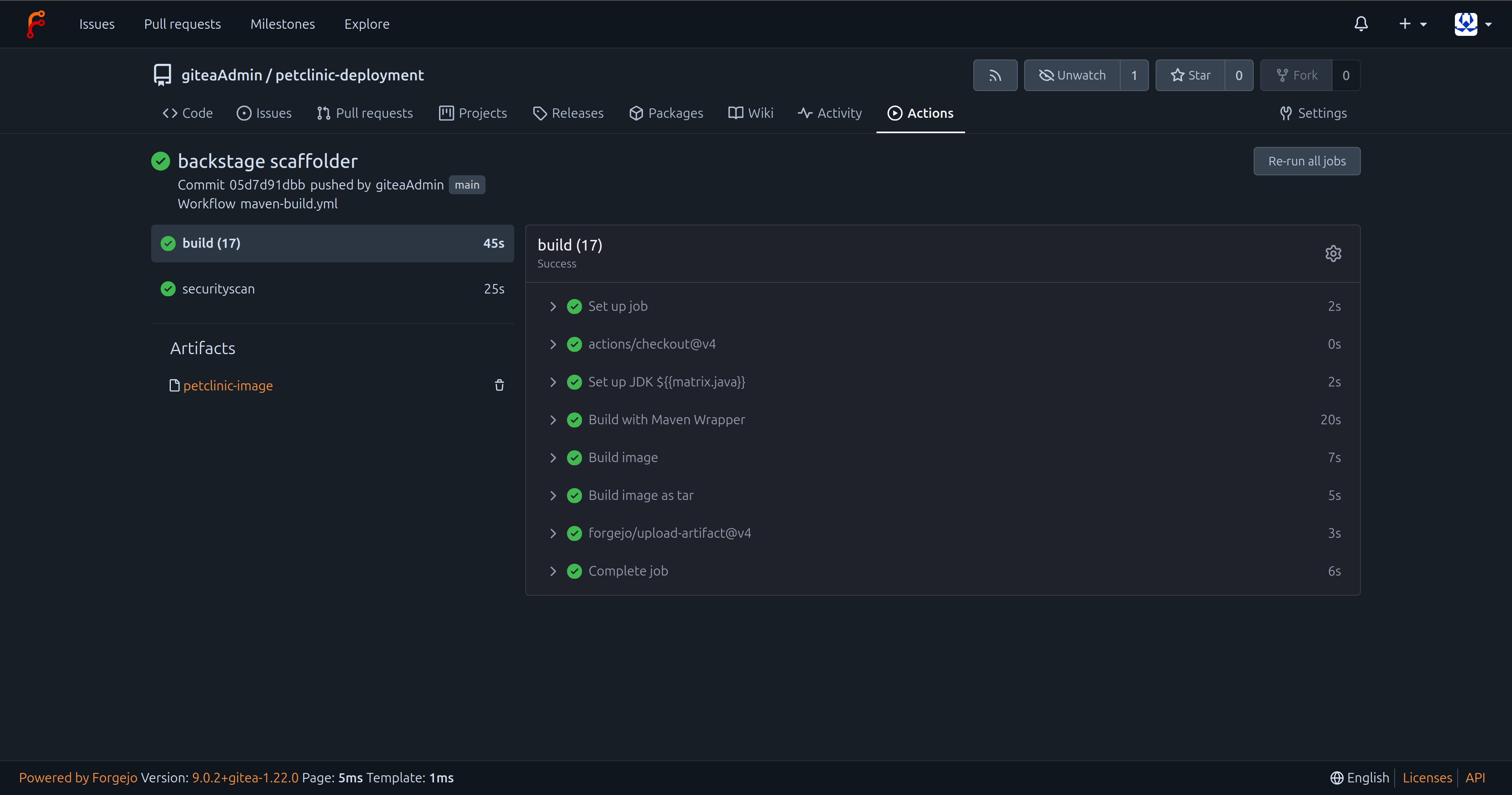

Monitoring Workflow Progress and Logs

Once the workflow starts, you can visit the Actions page to:

  • view the current status and total runtime of the entire workflow
  • check individual action runtimes and results
  • access detailed logs by clicking on each action (provides insights into what happened in each action, making debugging and auditing easier)

By utilizing this CI workflow, you benefit from a fully automated, transparent, and secure process that maintains the highest quality standards for your code and images.
