Host to Kind routing

When we subnetwork inside a VM (e.g. WSL), you won't get a connection from the host (e.g. Windows) to the kind network inside the VM.

tldr;

Add a route in windows to your docker network (e.g. 192.168.199.0/24) over the vm network connector:

# in windows admin mode

# 192.168.199.0/24: the network you want to route to, here: the dockernetwork inside vm
# 172.29.216.239  : the router address which routes the above network, here: the gateway inside the vm to windows
PS C:\Users\stl> route add 192.168.199.0/24 172.29.216.239

Outcome

Now in windows you can reach Docker network addresses inside your VM:

PS C:\Users\stl> ping 192.168.199.33

Ping wird ausgeführt für 192.168.199.33 mit 32 Bytes Daten:
Antwort von 192.168.199.33: Bytes=32 Zeit<1ms TTL=64

Intro

So let' say you created a edp setup by

# in WSL

$ ./edpbuilder.sh --type kind --stacks all --domain client-192-168-199-35.traefik.me --domain-gitea gitea-client-192-168-199-35.traefik.me

you will not be able to send tcp/ip packets from the host (windows) to the kind network gateway, which is inside the docker network of your vm:

# in windows

PS C:\Users\stl> ping gitea-client-192-168-199-35.traefik.me

Ping wird ausgeführt für gitea-client-192-168-199-35.traefik.me [192.168.199.35] mit 32 Bytes Daten:
Zeitüberschreitung der Anforderung.

Goal: Windows can access EDP

So what we want is a situation like the following:

In the following screenshot we have at left a browser in windows, and at the right a terminal in wsl. In both a request to client-192-168-199-35.traefik.meis working:

Setup Route from windows to WSL

What we need is a route from windows to the docker containers inside the WSL.

So first check your docker network address:

# in wsl

$ ip r
default via 172.29.208.1 dev eth0 proto kernel
172.29.208.0/20 dev eth0 proto kernel scope link src 172.29.216.239
192.168.199.0/28 dev docker0 proto kernel scope link src 192.168.199.1
192.168.199.32/27 dev br-8e96da84337e proto kernel scope link src 192.168.199.33

What you see is

the network connection to the host with the gateway 172.29.216.239
the docker network 192.168.199.0/28 ranging from 192.168.199.1 to 192.168.199.14 (28 = 255.255.240.0)
and the kind network 192.168.199.32/27 ranging from 192.168.199.33 to 192.168.199.62 (27 = 255.255.224).

In Windows we see that the docker network is reachabel via gateway 172.29.208.1 which is inside network 172.29.208.0/20:

PS C:\Users\stl> ipconfig
...
Ethernet-Adapter vEthernet (WSL):

   Verbindungsspezifisches DNS-Suffix:
   IPv4-Adresse  . . . . . . . . . . : 172.29.208.1
   Subnetzmaske  . . . . . . . . . . : 255.255.240.0
   Standardgateway . . . . . . . . . :
...

add route

Now we add the route:

# in windows

PS C:\Users\stl> route add 192.168.199.0/24 172.29.216.239
 OK!

and can check it with

# in windows

PS C:\Users\stl> route print
...
===========================================================================
Aktive Routen:
     Netzwerkziel    Netzwerkmaske          Gateway    Schnittstelle Metrik
          0.0.0.0          0.0.0.0      10.34.216.1    10.34.219.176     25
...
    192.168.199.0    255.255.255.0   172.29.216.239     172.29.208.1     16
...
===========================================================================

and have network 192.168.199.0/24 to be routed by 172.29.216.239 over 172.29.208.1.

Test

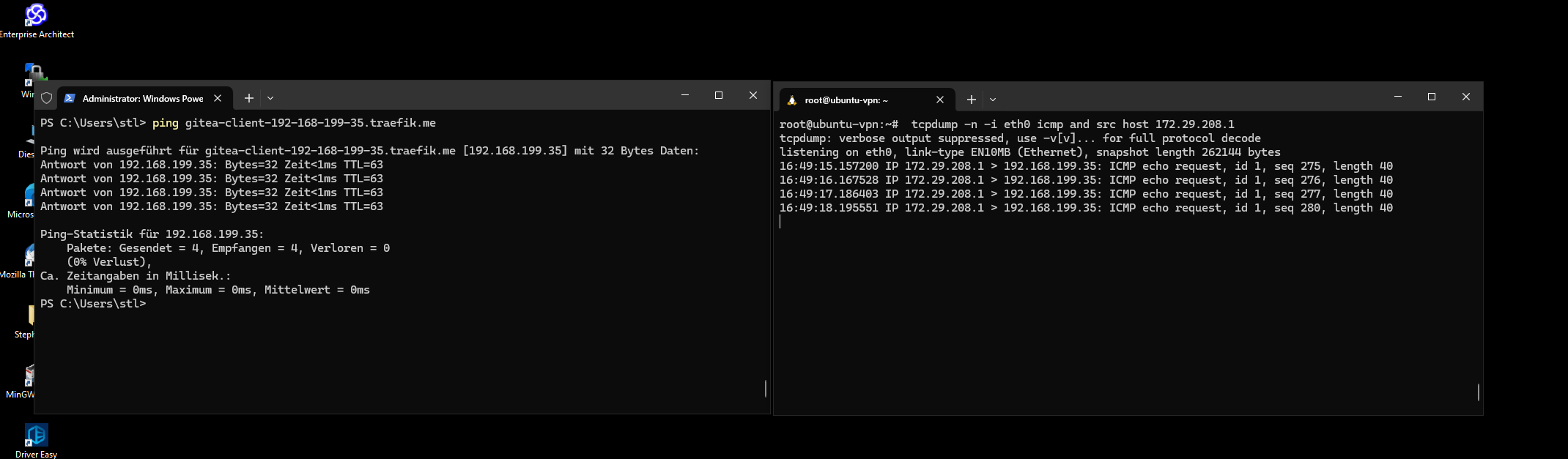

Now you should be able to ping from windows to wsl:

# in windows, send ping

PS C:\Users\stl> ping gitea-client-192-168-199-35.traefik.me

Ping wird ausgeführt für gitea-client-192-168-199-35.traefik.me [192.168.199.35] mit 32 Bytes Daten:
Antwort von 192.168.199.35: Bytes=32 Zeit<1ms TTL=63
Antwort von 192.168.199.35: Bytes=32 Zeit<1ms TTL=63
Antwort von 192.168.199.35: Bytes=32 Zeit<1ms TTL=63
Antwort von 192.168.199.35: Bytes=32 Zeit<1ms TTL=63

Ping-Statistik für 192.168.199.35:
    Pakete: Gesendet = 4, Empfangen = 4, Verloren = 0
    (0% Verlust),
Ca. Zeitangaben in Millisek.:
    Minimum = 0ms, Maximum = 0ms, Mittelwert = 0ms

# in wsl, receive ping

tcpdump -n -i eth0 icmp and src host 172.29.208.1

Trouble shooting

If icmp or http doesn't work check that a fw is off:

# in wsl

sudo ufw diable

Also be sure that ip forwarding is on in wsl:

# in wsl

echo 1 | sudo tee /proc/sys/net/ipv4/ip_forward
