ingress-nginx-helm/docs/deploy/index.md

Installation Guide

Contents

• Generic Deployment
  • Mandatory command
  • Provider Specific Steps
    • Docker for Mac
    • minikube
    • AWS
    • GCE - GKE
    • Azure
    • Bare-metal
  • Verify installation
  • Detect installed version
• Using Helm

Generic Deployment

The following resources are required for a generic deployment.

Mandatory command

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/mandatory.yaml

Provider Specific Steps

There are cloud provider specific yaml files.

Docker for Mac

Kubernetes is available in Docker for Mac (from version 18.06.0-ce)

Create a service

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/provider/cloud-generic.yaml

minikube

For standard usage:

minikube addons enable ingress

For development:

1. Disable the ingress addon:

$ minikube addons disable ingress

2. Execute make dev-env
3. Confirm the nginx-ingress-controller deployment exists:

$ kubectl get pods -n ingress-nginx
NAME                                       READY     STATUS    RESTARTS   AGE
default-http-backend-66b447d9cf-rrlf9      1/1       Running   0          12s
nginx-ingress-controller-fdcdcd6dd-vvpgs   1/1       Running   0          11s

AWS

In AWS we use an Elastic Load Balancer (ELB) to expose the NGINX Ingress controller behind a Service of Type=LoadBalancer. Since Kubernetes v1.9.0 it is possible to use a classic load balancer (ELB) or network load balancer (NLB) Please check the elastic load balancing AWS details page

Elastic Load Balancer - ELB

This setup requires to choose in which layer (L4 or L7) we want to configure the ELB:

• Layer 4: use TCP as the listener protocol for ports 80 and 443.
• Layer 7: use HTTP as the listener protocol for port 80 and terminate TLS in the ELB

For L4:

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/provider/aws/service-l4.yaml
kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/provider/aws/patch-configmap-l4.yaml

For L7:

Change line of the file provider/aws/service-l7.yaml replacing the dummy id with a valid one "arn:aws:acm:us-west-2:XXXXXXXX:certificate/XXXXXX-XXXXXXX-XXXXXXX-XXXXXXXX" Then execute:

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/provider/aws/service-l7.yaml
kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/provider/aws/patch-configmap-l7.yaml

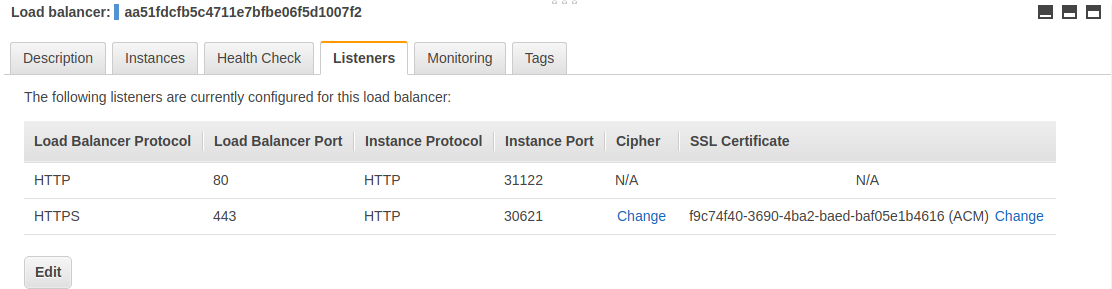

This example creates an ELB with just two listeners, one in port 80 and another in port 443

Network Load Balancer (NLB)

This type of load balancer is supported since v1.10.0 as an ALPHA feature.

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/provider/aws/service-nlb.yaml

GCE - GKE

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/provider/cloud-generic.yaml

Important Note: proxy protocol is not supported in GCE/GKE

Azure

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/provider/cloud-generic.yaml

Bare-metal

Using NodePort:

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/master/deploy/provider/baremetal/service-nodeport.yaml

!!! tip For extended notes regarding deployments on bare-metal, see Bare-metal considerations.

Verify installation

To check if the ingress controller pods have started, run the following command:

kubectl get pods --all-namespaces -l app.kubernetes.io/name=ingress-nginx --watch

Once the operator pods are running, you can cancel the above command by typing Ctrl+C. Now, you are ready to create your first ingress.

Detect installed version

To detect which version of the ingress controller is running, exec into the pod and run nginx-ingress-controller version command.

POD_NAMESPACE=ingress-nginx
POD_NAME=$(kubectl get pods -n $POD_NAMESPACE -l app.kubernetes.io/name=ingress-nginx -o jsonpath='{.items[0].metadata.name}')
kubectl exec -it $POD_NAME -n $POD_NAMESPACE -- /nginx-ingress-controller --version

Using Helm

NGINX Ingress controller can be installed via Helm using the chart stable/nginx-ingress from the official charts repository. To install the chart with the release name my-nginx:

helm install stable/nginx-ingress --name my-nginx

If the kubernetes cluster has RBAC enabled, then run:

helm install stable/nginx-ingress --name my-nginx --set rbac.create=true

Detect installed version:

POD_NAME=$(kubectl get pods -l app.kubernetes.io/name=ingress-nginx -o jsonpath='{.items[0].metadata.name}')
kubectl exec -it $POD_NAME -- /nginx-ingress-controller --version
