OpenTelemetry

Enables requests served by NGINX for distributed telemetry via The OpenTelemetry Project.

Using the third party module opentelemetry-cpp-contrib/nginx the Ingress-Nginx Controller can configure NGINX to enable OpenTelemetry instrumentation. By default this feature is disabled.

Usage

To enable the instrumentation we must enable OpenTelemetry in the configuration ConfigMap:

data:
  enable-opentelemetry: "true"

To enable or disable instrumentation for a single Ingress, use the enable-opentelemetry annotation:

kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/enable-opentelemetry: "true"

We must also set the host to use when uploading traces:

otlp-collector-host: "otel-coll-collector.otel.svc"

NOTE: While the option is called otlp-collector-host, you will need to point this to any backend that receives otlp-grpc.

Next you will need to deploy a distributed telemetry system which uses OpenTelemetry. opentelemetry-collector, Jaeger Tempo, and zipkin have been tested.

Other optional configuration options:

# specifies the name to use for the server span
opentelemetry-operation-name

# sets whether or not to trust incoming telemetry spans
opentelemetry-trust-incoming-span

# specifies the port to use when uploading traces, Default: 4317
otlp-collector-port

# specifies the service name to use for any traces created, Default: nginx
otel-service-name

# The maximum queue size. After the size is reached data are dropped.
otel-max-queuesize

# The delay interval in milliseconds between two consecutive exports.
otel-schedule-delay-millis

# How long the export can run before it is cancelled.
otel-schedule-delay-millis

# The maximum batch size of every export. It must be smaller or equal to maxQueueSize.
otel-max-export-batch-size

# specifies sample rate for any traces created, Default: 0.01
otel-sampler-ratio

# specifies the sampler to be used when sampling traces.
# The available samplers are: AlwaysOn,  AlwaysOff, TraceIdRatioBased, Default: AlwaysOff
otel-sampler

# Uses sampler implementation which by default will take a sample if parent Activity is sampled, Default: false
otel-sampler-parent-based

Note that you can also set whether to trust incoming spans (global default is true) per-location using annotations like the following:

kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/opentelemetry-trust-incoming-span: "true"

Examples

The following examples show how to deploy and test different distributed telemetry systems. These example can be performed using Docker Desktop.

In the esigo/nginx-example GitHub repository is an example of a simple hello service:

graph TB
    subgraph Browser
    start["http://esigo.dev/hello/nginx"]
    end

    subgraph app
        sa[service-a]
        sb[service-b]
        sa --> |name: nginx| sb
        sb --> |hello nginx!| sa
    end

    subgraph otel
        otc["Otel Collector"]
    end

    subgraph observability
        tempo["Tempo"]
        grafana["Grafana"]
        backend["Jaeger"]
        zipkin["Zipkin"]
    end

    subgraph ingress-nginx
        ngx[nginx]
    end

    subgraph ngx[nginx]
        ng[nginx]
        om[OpenTelemetry module]
    end

    subgraph Node
        app
        otel
        observability
        ingress-nginx
        om --> |otlp-gRPC| otc --> |jaeger| backend
        otc --> |zipkin| zipkin
        otc --> |otlp-gRPC| tempo --> grafana
        sa --> |otlp-gRPC| otc
        sb --> |otlp-gRPC| otc
        start --> ng --> sa
    end

To install the example and collectors run:

Enable Ingress addon with:

  opentelemetry:
    enabled: true
    image: registry.k8s.io/ingress-nginx/opentelemetry:v20230107-helm-chart-4.4.2-2-g96b3d2165@sha256:331b9bebd6acfcd2d3048abbdd86555f5be76b7e3d0b5af4300b04235c6056c9
    containerSecurityContext:
    allowPrivilegeEscalation: false

Enable OpenTelemetry and set the otlp-collector-host:

$ echo '
  apiVersion: v1
  kind: ConfigMap
  data:
    enable-opentelemetry: "true"
    opentelemetry-config: "/etc/nginx/opentelemetry.toml"
    opentelemetry-operation-name: "HTTP $request_method $service_name $uri"
    opentelemetry-trust-incoming-span: "true"
    otlp-collector-host: "otel-coll-collector.otel.svc"
    otlp-collector-port: "4317"
    otel-max-queuesize: "2048"
    otel-schedule-delay-millis: "5000"
    otel-max-export-batch-size: "512"
    otel-service-name: "nginx-proxy" # Opentelemetry resource name
    otel-sampler: "AlwaysOn" # Also: AlwaysOff, TraceIdRatioBased
    otel-sampler-ratio: "1.0"
    otel-sampler-parent-based: "false"
  metadata:
    name: ingress-nginx-controller
    namespace: ingress-nginx
  ' | kubectl replace -f -

Deploy otel-collector, grafana and Jaeger backend:

# add helm charts needed for grafana and OpenTelemetry collector
helm repo add open-telemetry https://open-telemetry.github.io/opentelemetry-helm-charts
helm repo add grafana https://grafana.github.io/helm-charts
helm repo update
# deply cert-manager needed for OpenTelemetry collector operator
kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.9.1/cert-manager.yaml
# create observability namespace
kubectl apply -f https://raw.githubusercontent.com/esigo/nginx-example/main/observability/namespace.yaml
# install OpenTelemetry collector operator
helm upgrade --install otel-collector-operator -n otel --create-namespace open-telemetry/opentelemetry-operator
# deploy OpenTelemetry collector
kubectl apply -f https://raw.githubusercontent.com/esigo/nginx-example/main/observability/collector.yaml
# deploy Jaeger all-in-one
kubectl apply -f https://github.com/jaegertracing/jaeger-operator/releases/download/v1.37.0/jaeger-operator.yaml -n observability
kubectl apply -f https://raw.githubusercontent.com/esigo/nginx-example/main/observability/jaeger.yaml -n observability
# deploy zipkin
kubectl apply -f https://raw.githubusercontent.com/esigo/nginx-example/main/observability/zipkin.yaml -n observability
# deploy tempo and grafana
helm upgrade --install tempo grafana/tempo --create-namespace -n observability
helm upgrade -f https://raw.githubusercontent.com/esigo/nginx-example/main/observability/grafana/grafana-values.yaml --install grafana grafana/grafana --create-namespace -n observability

Build and deploy demo app:

# build images
make images

# deploy demo app:
make deploy-app

Make a few requests to the Service:

kubectl port-forward --namespace=ingress-nginx service/ingress-nginx-controller 8090:80
curl http://esigo.dev:8090/hello/nginx


StatusCode        : 200
StatusDescription : OK
Content           : {"v":"hello nginx!"}

RawContent        : HTTP/1.1 200 OK
                    Connection: keep-alive
                    Content-Length: 21
                    Content-Type: text/plain; charset=utf-8
                    Date: Mon, 10 Oct 2022 17:43:33 GMT

                    {"v":"hello nginx!"}

Forms             : {}
Headers           : {[Connection, keep-alive], [Content-Length, 21], [Content-Type, text/plain; charset=utf-8], [Date,
                    Mon, 10 Oct 2022 17:43:33 GMT]}
Images            : {}
InputFields       : {}
Links             : {}
ParsedHtml        : System.__ComObject
RawContentLength  : 21

View the Grafana UI:

kubectl port-forward --namespace=observability service/grafana 3000:80

In the Grafana interface we can see the details:

View the Jaeger UI:

kubectl port-forward --namespace=observability service/jaeger-all-in-one-query 16686:16686

In the Jaeger interface we can see the details:

View the Zipkin UI:

kubectl port-forward --namespace=observability service/zipkin 9411:9411

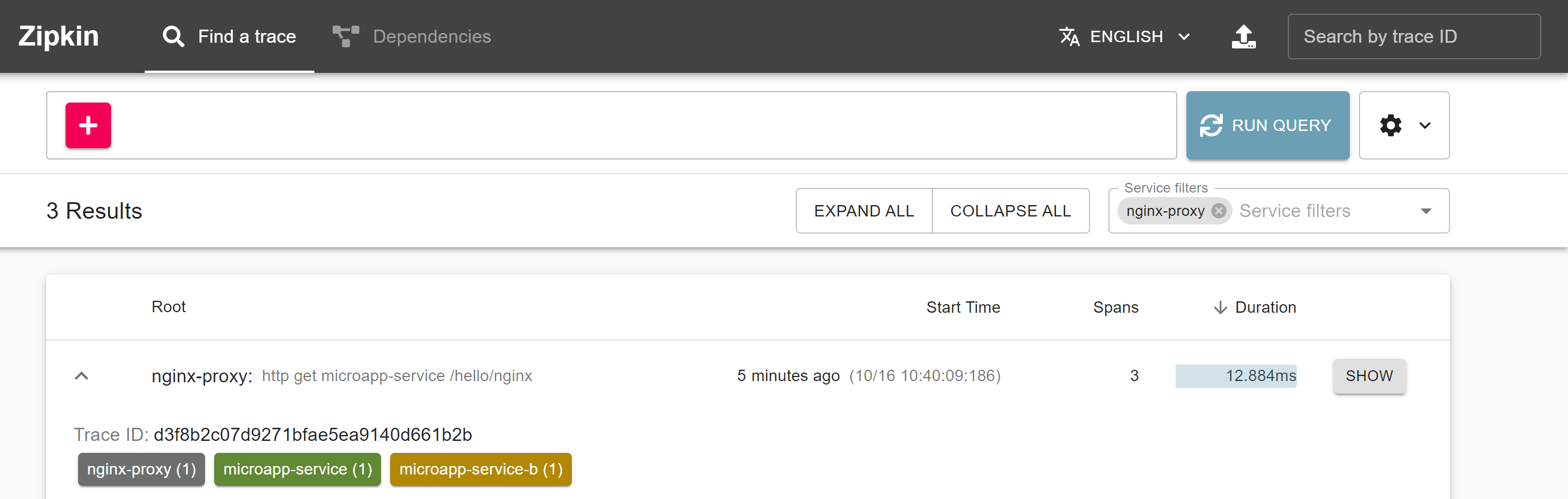

In the Zipkin interface we can see the details:
