Deploying the Nginx Ingress controller

This example aims to demonstrate the deployment of an nginx ingress controller and use a ConfigMap to enable nginx vts module to export metrics in prometheus format.

vts-metrics

Vts-metrics export NGINX metrics. To deploy all the files simply run kubectl apply -f nginx. A deployment and service will be created which already has a prometheus.io/scrape: 'true' annotation and if you added the recommended Prometheus service-endpoint scraping configuration, Prometheus will scrape it automatically and you start using the generated metrics right away.

Default Backend

The default backend is a Service capable of handling all url paths and hosts the nginx controller doesn't understand. This most basic implementation just returns a 404 page:

$ kubectl apply -f default-backend.yaml
deployment "default-http-backend" created
service "default-http-backend" created

$ kubectl -n kube-system get po
NAME                                    READY     STATUS    RESTARTS   AGE
default-http-backend-2657704409-qgwdd   1/1       Running   0          28s

Custom configuration

$ cat nginx-vts-metrics-conf.yaml
apiVersion: v1
data:
  enable-vts-status: "true"
kind: ConfigMap
metadata:
  name: nginx-vts-metrics-conf
  namespace: kube-system

$ kubectl create -f nginx-vts-metrics-conf.yaml

Controller

You can deploy the controller as follows:

$ kubectl apply -f nginx-ingress-controller.yaml
deployment "nginx-ingress-controller" created

$ kubectl -n kube-system get po
NAME                                       READY     STATUS    RESTARTS   AGE
default-http-backend-2657704409-qgwdd      1/1       Running   0          2m
nginx-ingress-controller-873061567-4n3k2   1/1       Running   0          42s

Result

Check whether the ingress controller successfully generated the NGINX vts status:

$ kubectl exec nginx-ingress-controller-873061567-4n3k2 -n kube-system cat /etc/nginx/nginx.conf|grep vhost_traffic_status_display
 vhost_traffic_status_display;
 vhost_traffic_status_display_format html;

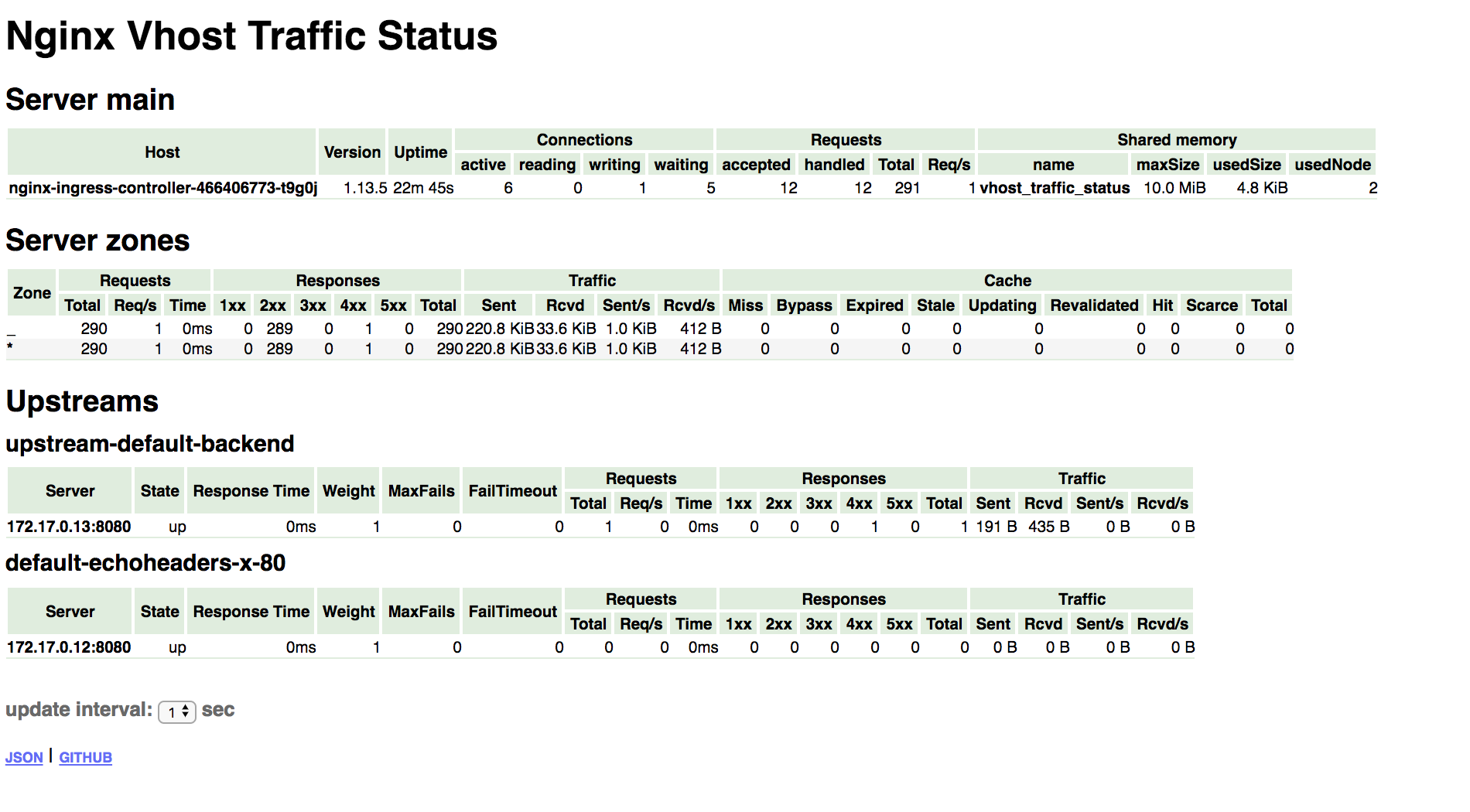

NGINX vts dashboard

The vts dashboard provides real time metrics.

Because the vts port it's not yet exposed, you should forward the controller port to see it.

$ kubectl port-forward $(kubectl get pods --selector=k8s-app=nginx-ingress-controller -n kube-system --output=jsonpath={.items..metadata.name}) -n kube-system 18080

Now open the url http://localhost:18080/nginx_status in your browser.

Prometheus metrics output

NGINX Ingress controller already has a parser to convert vts metrics to Prometheus format. It exports prometheus metrics to the address :10254/metrics.

$ kubectl exec -ti -n kube-system $(kubectl get pods --selector=k8s-app=nginx-ingress-controller -n kube-system --output=jsonpath={.items..metadata.name}) curl localhost:10254/metrics
ingress_controller_ssl_expire_time_seconds{host="foo.bar.com"} -6.21355968e+10
# HELP ingress_controller_success Cumulative number of Ingress controller reload operations
# TYPE ingress_controller_success counter
ingress_controller_success{count="reloads"} 3
# HELP nginx_bytes_total Nginx bytes count
# TYPE nginx_bytes_total counter
nginx_bytes_total{direction="in",ingress_class="nginx",namespace="",server_zone="*"} 3708
nginx_bytes_total{direction="in",ingress_class="nginx",namespace="",server_zone="_"} 3708
nginx_bytes_total{direction="out",ingress_class="nginx",namespace="",server_zone="*"} 5256
nginx_bytes_total{direction="out",ingress_class="nginx",namespace="",server_zone="_"} 5256

Customize metrics

The default vts vhost key is $geoip_country_code country::* that expose metrics groupped by server and country code. The example below show how to have metrics grouped by server and server path.

NGINX custom configuration ( http level )

  apiVersion: v1
  kind: ConfigMap
  data:
    enable-vts-status: "true"
    vts-default-filter-key: "$server_name"
...

Customize ingress

 apiVersion: extensions/v1beta1
  kind: Ingress
  metadata:
    annotations:
      ingress.kubernetes.io/vts-filter-key: $uri $server_name
    name: ingress

Result
