OpenTelemetry

Enables requests served by NGINX for distributed telemetry via The OpenTelemetry Project.

Using the third party module opentelemetry-cpp-contrib/nginx the NGINX ingress controller can configure NGINX to enable OpenTelemetry instrumentation. By default this feature is disabled.

Usage

To enable the instrumentation we must enable OpenTelemetry in the configuration ConfigMap:

data:
  enable-opentelemetry: "true"

To enable or disable instrumentation for a single Ingress, use the enable-opentelemetry annotation:

kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/enable-opentelemetry: "true"

We must also set the host to use when uploading traces:

otlp-collector-host: "otel-coll-collector.otel.svc"

NOTE: While the option is called otlp-collector-host, you will need to point this to any backend that recieves otlp-grpc.

Next you will need to deploy a distributed telemetry system which uses OpenTelemetry. opentelemetry-collector, Jaeger Tempo, and zipkin have been tested.

Other optional configuration options:

# specifies the name to use for the server span
opentelemetry-operation-name

# sets whether or not to trust incoming telemetry spans
opentelemetry-trust-incoming-span

# specifies the port to use when uploading traces, Default: 4317
otlp-collector-port

# specifies the service name to use for any traces created, Default: nginx
otel-service-name

# The maximum queue size. After the size is reached data are dropped.
otel-max-queuesize

# The delay interval in milliseconds between two consecutive exports.
otel-schedule-delay-millis

# How long the export can run before it is cancelled.
otel-schedule-delay-millis

# The maximum batch size of every export. It must be smaller or equal to maxQueueSize.
otel-max-export-batch-size

# specifies sample rate for any traces created, Default: 0.01
otel-sampler-ratio

# specifies the sampler to be used when sampling traces.
# The available samplers are: AlwaysOn,  AlwaysOff, TraceIdRatioBased, Default: AlwaysOff
otel-sampler

# Uses sampler implementation which by default will take a sample if parent Activity is sampled, Default: false
otel-sampler-parent-based

Note that you can also set whether to trust incoming spans (global default is true) per-location using annotations like the following:

kind: Ingress
metadata:
  annotations:
    nginx.ingress.kubernetes.io/opentelemetry-trust-incoming-span: "true"

Examples

The following examples show how to deploy and test different distributed telemetry systems. These example can be performed using Docker Desktop.

In the esigo/nginx-example GitHub repository is an example of a simple hello service:

graph TB
    subgraph Browser
    start["http://esigo.dev/hello/nginx"]
    end

    subgraph app
        sa[service-a]
        sb[service-b]
        sa --> |name: nginx| sb
        sb --> |hello nginx!| sa
    end

    subgraph otel
        otc["Otel Collector"]
    end

    subgraph observability
        tempo["Tempo"]
        grafana["Grafana"]
        backend["Jaeger"]
        zipkin["Zipkin"]
    end

    subgraph ingress-nginx
        ngx[nginx]
    end

    subgraph ngx[nginx]
        ng[nginx]
        om[OpenTelemetry module]
    end

    subgraph Node
        app
        otel
        observability
        ingress-nginx
        om --> |otlp-gRPC| otc --> |jaeger| backend
        otc --> |zipkin| zipkin
        otc --> |otlp-gRPC| tempo --> grafana
        sa --> |otlp-gRPC| otc
        sb --> |otlp-gRPC| otc
        start --> ng --> sa
    end

To install the example and collectors run:

1. Enable Ingress addon with:

     opentelemetry:
       enabled: true
       image: registry.k8s.io/ingress-nginx/opentelemetry:v20230107-helm-chart-4.4.2-2-g96b3d2165@sha256:331b9bebd6acfcd2d3048abbdd86555f5be76b7e3d0b5af4300b04235c6056c9
       containerSecurityContext:
       allowPrivilegeEscalation: false


2. Enable OpenTelemetry and set the otlp-collector-host:

   $ echo '
     apiVersion: v1
     kind: ConfigMap
     data:
       enable-opentelemetry: "true"
       opentelemetry-config: "/etc/nginx/opentelemetry.toml"
       opentelemetry-operation-name: "HTTP $request_method $service_name $uri"
       opentelemetry-trust-incoming-span: "true"
       otlp-collector-host: "otel-coll-collector.otel.svc"
       otlp-collector-port: "4317"
       otel-max-queuesize: "2048"
       otel-schedule-delay-millis: "5000"
       otel-max-export-batch-size: "512"
       otel-service-name: "nginx-proxy" # Opentelemetry resource name
       otel-sampler: "AlwaysOn" # Also: AlwaysOff, TraceIdRatioBased
       otel-sampler-ratio: "1.0"
       otel-sampler-parent-based: "false"
     metadata:
       name: ingress-nginx-controller
       namespace: ingress-nginx
     ' | kubectl replace -f -


3. Deploy otel-collector, grafana and Jaeger backend:

   # add helm charts needed for grafana and OpenTelemetry collector
   helm repo add open-telemetry https://open-telemetry.github.io/opentelemetry-helm-charts
   helm repo add grafana https://grafana.github.io/helm-charts
   helm repo update
   # deply cert-manager needed for OpenTelemetry collector operator
   kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.9.1/cert-manager.yaml
   # create observability namespace
   kubectl apply -f https://raw.githubusercontent.com/esigo/nginx-example/main/observability/namespace.yaml
   # install OpenTelemetry collector operator
   helm upgrade --install otel-collector-operator -n otel --create-namespace open-telemetry/opentelemetry-operator
   # deploy OpenTelemetry collector
   kubectl apply -f https://raw.githubusercontent.com/esigo/nginx-example/main/observability/collector.yaml
   # deploy Jaeger all-in-one
   kubectl apply -f https://github.com/jaegertracing/jaeger-operator/releases/download/v1.37.0/jaeger-operator.yaml -n observability
   kubectl apply -f https://raw.githubusercontent.com/esigo/nginx-example/main/observability/jaeger.yaml -n observability
   # deploy zipkin
   kubectl apply -f https://raw.githubusercontent.com/esigo/nginx-example/main/observability/zipkin.yaml -n observability
   # deploy tempo and grafana
   helm upgrade --install tempo grafana/tempo --create-namespace -n observability
   helm upgrade -f https://raw.githubusercontent.com/esigo/nginx-example/main/observability/grafana/grafana-values.yaml --install grafana grafana/grafana --create-namespace -n observability


4. Build and deploy demo app:

   # build images
   make images

   # deploy demo app:
   make deploy-app


5. Make a few requests to the Service:

   kubectl port-forward --namespace=ingress-nginx service/ingress-nginx-controller 8090:80
   curl http://esigo.dev:8090/hello/nginx


   StatusCode        : 200
   StatusDescription : OK
   Content           : {"v":"hello nginx!"}

   RawContent        : HTTP/1.1 200 OK
                       Connection: keep-alive
                       Content-Length: 21
                       Content-Type: text/plain; charset=utf-8
                       Date: Mon, 10 Oct 2022 17:43:33 GMT

                       {"v":"hello nginx!"}

   Forms             : {}
   Headers           : {[Connection, keep-alive], [Content-Length, 21], [Content-Type, text/plain; charset=utf-8], [Date,
                       Mon, 10 Oct 2022 17:43:33 GMT]}
   Images            : {}
   InputFields       : {}
   Links             : {}
   ParsedHtml        : System.__ComObject
   RawContentLength  : 21


6. View the Grafana UI:

   kubectl port-forward --namespace=observability service/grafana 3000:80


   In the Grafana interface we can see the details:

7. View the Jaeger UI:

   kubectl port-forward --namespace=observability service/jaeger-all-in-one-query 16686:16686


   In the Jaeger interface we can see the details:

8. View the Zipkin UI:

   kubectl port-forward --namespace=observability service/zipkin 9411:9411

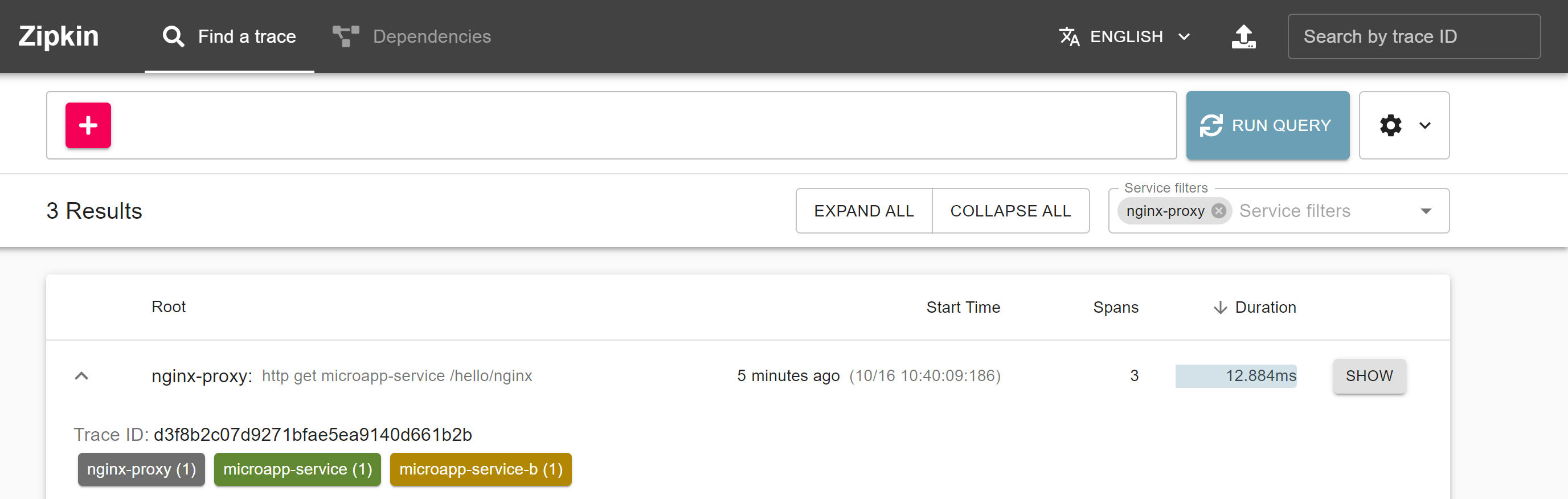

   In the Zipkin interface we can see the details:
