OpenTracing

Enables requests served by NGINX for distributed tracing via The OpenTracing Project.

Using the third party module opentracing-contrib/nginx-opentracing the NGINX ingress controller can configure NGINX to enable OpenTracing instrumentation. By default this feature is disabled.

Usage

To enable the instrumentation we must enable OpenTracing in the configuration ConfigMap:

data:
  enable-opentracing: "true"

We must also set the host to use when uploading traces:

zipkin-collector-host: zipkin.default.svc.cluster.local
jaeger-collector-host: jaeger-collector.default.svc.cluster.local

NOTE: While the option is called jaeger-collector-host, you will need to point this to a jaeger-agent, and not the jaeger-collector component.

Next you will need to deploy a distributed tracing system which uses OpenTracing. Both Zipkin and Jaeger have been tested.

Other optional configuration options:

# specifies the port to use when uploading traces, Default: 9411
zipkin-collector-port

# specifies the service name to use for any traces created, Default: nginx
zipkin-service-name

# specifies sample rate for any traces created, Default: 1.0
zipkin-sample-rate

# specifies the port to use when uploading traces, Default: 6831
jaeger-collector-port

# specifies the service name to use for any traces created, Default: nginx
jaeger-service-name

# specifies the sampler to be used when sampling traces.
# The available samplers are: const, probabilistic, ratelimiting, remote, Default: const
jaeger-sampler-type

# specifies the argument to be passed to the sampler constructor, Default: 1
jaeger-sampler-param

All these options (including host) allow environment variables, such as $HOSTNAME or $HOST_IP. In the case of Jaeger, if you have a Jaeger agent running on each machine in your cluster, you can use something like $HOST_IP (which can be 'mounted' with the status.hostIP fieldpath) to make sure traces will be sent to the local agent.

Examples

The following examples show how to deploy and test different distributed tracing systems. These example can be performed using Minikube.

Zipkin

In the rnburn/zipkin-date-server GitHub repository is an example of a dockerized date service. To install the example and Zipkin collector run:

kubectl create -f https://raw.githubusercontent.com/rnburn/zipkin-date-server/master/kubernetes/zipkin.yaml
kubectl create -f https://raw.githubusercontent.com/rnburn/zipkin-date-server/master/kubernetes/deployment.yaml

Also we need to configure the NGINX controller ConfigMap with the required values:

$ echo '
apiVersion: v1
kind: ConfigMap
data:
  enable-opentracing: "true"
  zipkin-collector-host: zipkin.default.svc.cluster.local
metadata:
  name: nginx-configuration
  namespace: kube-system
' | kubectl replace -f -

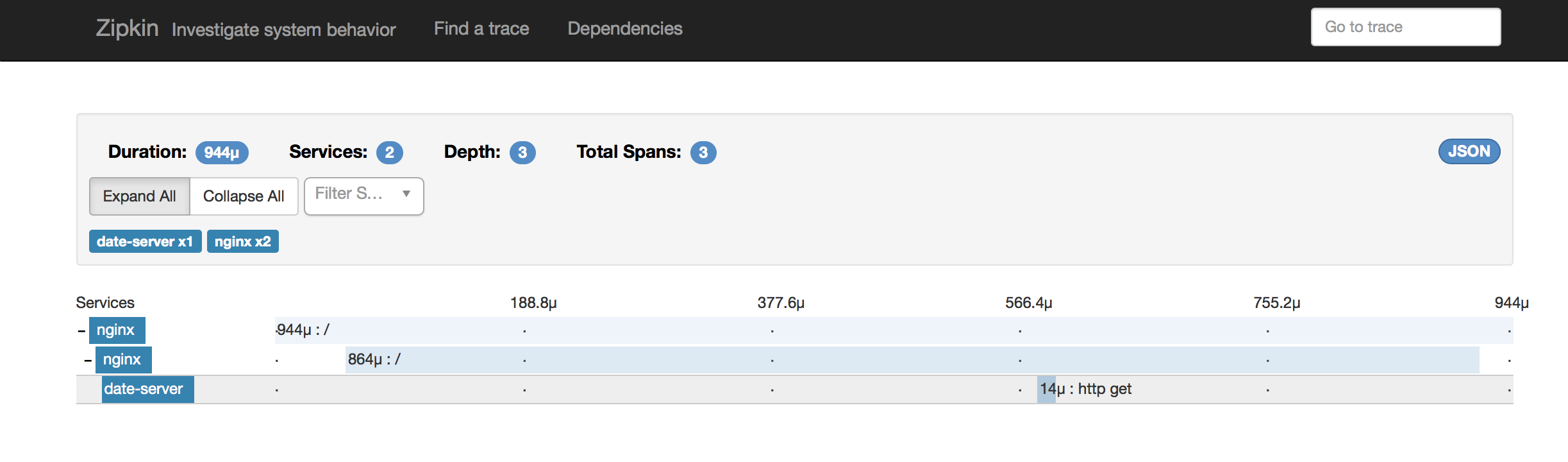

In the Zipkin interface we can see the details:

Jaeger

Enable Ingress addon in Minikube:
```
$ minikube addons enable ingress
```

Add Minikube IP to /etc/hosts:

$ echo "$(minikube ip) example.com" | sudo tee -a /etc/hosts

Apply a basic Service and Ingress Resource:

# Create Echoheaders Deployment
$ kubectl run echoheaders --image=k8s.gcr.io/echoserver:1.4 --replicas=1 --port=8080

# Expose as a Cluster-IP
$ kubectl expose deployment echoheaders --port=80 --target-port=8080 --name=echoheaders-x

# Apply the Ingress Resource
$ echo '
  apiVersion: extensions/v1beta1
  kind: Ingress
  metadata:
    name: echo-ingress
  spec:
    rules:
    - host: example.com
      http:
        paths:
        - backend:
            serviceName: echoheaders-x
            servicePort: 80
          path: /echo
  ' | kubectl apply -f -

Enable OpenTracing and set the jaeger-collector-host:

$ echo '
  apiVersion: v1
  kind: ConfigMap
  data:
    enable-opentracing: "true"
    jaeger-collector-host: jaeger-collector.default.svc.cluster.local
  metadata:
    name: nginx-configuration
    namespace: kube-system
  ' | kubectl replace -f -

Apply the Jaeger All-In-One Template:

$ kubectl apply -f https://raw.githubusercontent.com/jaegertracing/jaeger-kubernetes/master/all-in-one/jaeger-all-in-one-template.yml

Make a few requests to the Service:

$ curl example.com/echo -d "meow"

CLIENT VALUES:
client_address=172.17.0.5
command=POST
real path=/echo
query=nil
request_version=1.1
request_uri=http://example.com:8080/echo

SERVER VALUES:
server_version=nginx: 1.10.0 - lua: 10001

HEADERS RECEIVED:
accept=*/*
connection=close
content-length=4
content-type=application/x-www-form-urlencoded
host=example.com
user-agent=curl/7.54.0
x-forwarded-for=192.168.99.1
x-forwarded-host=example.com
x-forwarded-port=80
x-forwarded-proto=http
x-original-uri=/echo
x-real-ip=192.168.99.1
x-scheme=http
BODY:
meow

View the Jaeger UI:

$ minikube service jaeger-query --url

http://192.168.99.100:30183

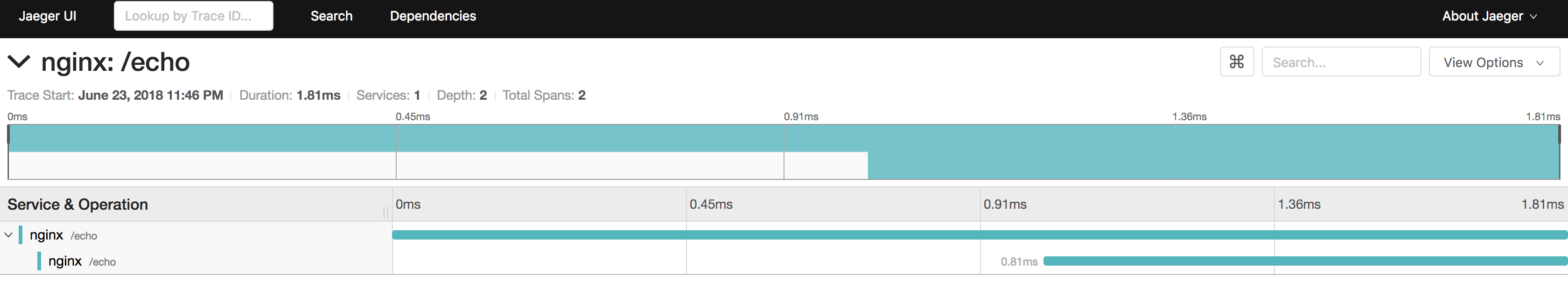

In the Jaeger interface we can see the details:
