| title | weight | description |
|---|---|---|
| CNOE Showtime | 6 | CNOE hands on |
Summary
CNOE is a 'Platform Engineering Framework' (Danger: Our wording!) - it is open source and locally runnable.
It consists of the orchestrator 'idpbuilder' and both of some predefined building blocks and also some predefined platform configurations.
Orchestrator 'idpbuilder', initial run
The orchestrator in CNOE is called 'idpbuilder'. It is locally installable binary
A typipcal first setup ist described here: https://cnoe.io/docs/reference-implementation/technology
# this is a local linux shell
# check local installation
type idpbuilder
idpbuilder is /usr/local/bin/idpbuilder
# check version
idpbuilder version
idpbuilder 0.8.0-nightly.20240914 go1.22.7 linux/amd64
# do some completion and aliasing
source <(idpbuilder completion bash)
alias ib=idpbuilder
complete -F __start_idpbuilder ib
# check and remove all existing kind clusters
kind delete clusters --all
kind get clusters
# sth. like 'No kind clusters found.'
# run
$ib create --use-path-routing --log-level debug --package-dir https://github.com/cnoe-io/stacks//ref-implementation
You get output like
stl@ubuntu-vpn:~/git/mms/ipceicis-developerframework$ idpbuilder create
Oct 1 10:09:18 INFO Creating kind cluster logger=setup
Oct 1 10:09:18 INFO Runtime detected logger=setup provider=docker
########################### Our kind config ############################
# Kind kubernetes release images https://github.com/kubernetes-sigs/kind/releases
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
image: "kindest/node:v1.30.0"
labels:
ingress-ready: "true"
extraPortMappings:
- containerPort: 443
hostPort: 8443
protocol: TCP
containerdConfigPatches:
- |-
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."gitea.cnoe.localtest.me:8443"]
endpoint = ["https://gitea.cnoe.localtest.me"]
[plugins."io.containerd.grpc.v1.cri".registry.configs."gitea.cnoe.localtest.me".tls]
insecure_skip_verify = true
######################### config end ############################
Show time steps
Goto https://cnoe.io/docs/reference-implementation/installations/idpbuilder/usage, and follow the flow
Prepare a k8s cluster with kind
You may have seen: when starting idpbuilder without an existing cluster named localdev it first creates this cluster by calling kindwith an internally defined config.
It's an important feature of idpbuilder that it will set up on an existing cluster localdev when called several times in a row e.g. to append new packages to the cluster.
That's why we here first create the kind cluster localdevitself:
cat << EOF | kind create cluster --name localdev --config=-
# Kind kubernetes release images https://github.com/kubernetes-sigs/kind/releases
kind: Cluster
apiVersion: kind.x-k8s.io/v1alpha4
nodes:
- role: control-plane
image: "kindest/node:v1.30.0"
labels:
ingress-ready: "true"
extraPortMappings:
- containerPort: 443
hostPort: 8443
protocol: TCP
containerdConfigPatches:
- |-
[plugins."io.containerd.grpc.v1.cri".registry.mirrors."gitea.cnoe.localtest.me:8443"]
endpoint = ["https://gitea.cnoe.localtest.me"]
[plugins."io.containerd.grpc.v1.cri".registry.configs."gitea.cnoe.localtest.me".tls]
insecure_skip_verify = true
# alternatively, if you have the kind config as file:
kind create cluster --name localdev --config kind-config.yaml
Output
A typical raw kind setup kubernetes cluster would look like this with respect to running pods:
be sure all pods are in status 'running'
stl@ubuntu-vpn:~/git/mms/idpbuilder$ k get pods -A
NAMESPACE NAME READY STATUS RESTARTS AGE
kube-system coredns-76f75df574-lb7jz 1/1 Running 0 15s
kube-system coredns-76f75df574-zm2wp 1/1 Running 0 15s
kube-system etcd-localdev-control-plane 1/1 Running 0 27s
kube-system kindnet-8qhd5 1/1 Running 0 13s
kube-system kindnet-r4d6n 1/1 Running 0 15s
kube-system kube-apiserver-localdev-control-plane 1/1 Running 0 27s
kube-system kube-controller-manager-localdev-control-plane 1/1 Running 0 27s
kube-system kube-proxy-vrh64 1/1 Running 0 15s
kube-system kube-proxy-w8ks9 1/1 Running 0 13s
kube-system kube-scheduler-localdev-control-plane 1/1 Running 0 27s
local-path-storage local-path-provisioner-6f8956fb48-6fvt2 1/1 Running 0 15s
First run: Start with core applications, 'core package'
Now we run idpbuilder the first time:
# now idpbuilder reuses the already existing cluster
# pls apply '--use-path-routing' otherwise as we discovered currently the service resolving inside the cluster won't work
ib create --use-path-routing
Output
idpbuilder log
stl@ubuntu-vpn:~/git/mms/idpbuilder$ ib create --use-path-routing
Oct 1 10:32:50 INFO Creating kind cluster logger=setup
Oct 1 10:32:50 INFO Runtime detected logger=setup provider=docker
Oct 1 10:32:50 INFO Cluster already exists logger=setup cluster=localdev
Oct 1 10:32:50 INFO Adding CRDs to the cluster logger=setup
Oct 1 10:32:51 INFO Setting up CoreDNS logger=setup
Oct 1 10:32:51 INFO Setting up TLS certificate logger=setup
Oct 1 10:32:51 INFO Creating localbuild resource logger=setup
Oct 1 10:32:51 INFO Starting EventSource controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository source=kind source: *v1alpha1.GitRepository
Oct 1 10:32:51 INFO Starting Controller controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository
Oct 1 10:32:51 INFO Starting EventSource controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild source=kind source: *v1alpha1.Localbuild
Oct 1 10:32:51 INFO Starting Controller controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild
Oct 1 10:32:51 INFO Starting EventSource controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage source=kind source: *v1alpha1.CustomPackage
Oct 1 10:32:51 INFO Starting Controller controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage
Oct 1 10:32:51 INFO Starting workers controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild worker count=1
Oct 1 10:32:51 INFO Starting workers controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage worker count=1
Oct 1 10:32:51 INFO Starting workers controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository worker count=1
Oct 1 10:32:54 INFO Waiting for Deployment my-gitea to become ready controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=6fc396d4-e0d5-4c80-aaee-20c1bbffea54
Oct 1 10:32:54 INFO Waiting for Deployment ingress-nginx-controller to become ready controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=6fc396d4-e0d5-4c80-aaee-20c1bbffea54
Oct 1 10:33:24 INFO Waiting for Deployment my-gitea to become ready controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=6fc396d4-e0d5-4c80-aaee-20c1bbffea54
Oct 1 10:33:24 INFO Waiting for Deployment ingress-nginx-controller to become ready controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=6fc396d4-e0d5-4c80-aaee-20c1bbffea54
Oct 1 10:33:54 INFO Waiting for Deployment my-gitea to become ready controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=6fc396d4-e0d5-4c80-aaee-20c1bbffea54
Oct 1 10:34:24 INFO installing bootstrap apps to ArgoCD controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=6fc396d4-e0d5-4c80-aaee-20c1bbffea54
Oct 1 10:34:24 INFO expected annotation, cnoe.io/last-observed-cli-start-time, not found controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=6fc396d4-e0d5-4c80-aaee-20c1bbffea54
Oct 1 10:34:24 INFO Checking if we should shutdown controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=6fc396d4-e0d5-4c80-aaee-20c1bbffea54
Oct 1 10:34:25 INFO installing bootstrap apps to ArgoCD controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=0667fa85-af1c-403f-bcd9-16ff8f2fad7e
Oct 1 10:34:25 INFO expected annotation, cnoe.io/last-observed-cli-start-time, not found controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=0667fa85-af1c-403f-bcd9-16ff8f2fad7e
Oct 1 10:34:25 INFO Checking if we should shutdown controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=0667fa85-af1c-403f-bcd9-16ff8f2fad7e
Oct 1 10:34:40 INFO installing bootstrap apps to ArgoCD controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=ec720aeb-02cd-4974-a991-cf2f19ce8536
Oct 1 10:34:40 INFO Checking if we should shutdown controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=ec720aeb-02cd-4974-a991-cf2f19ce8536
Oct 1 10:34:40 INFO Shutting Down controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=ec720aeb-02cd-4974-a991-cf2f19ce8536
Oct 1 10:34:40 INFO Stopping and waiting for non leader election runnables
Oct 1 10:34:40 INFO Stopping and waiting for leader election runnables
Oct 1 10:34:40 INFO Shutdown signal received, waiting for all workers to finish controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository
Oct 1 10:34:40 INFO Shutdown signal received, waiting for all workers to finish controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage
Oct 1 10:34:40 INFO All workers finished controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage
Oct 1 10:34:40 INFO Shutdown signal received, waiting for all workers to finish controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild
Oct 1 10:34:40 INFO All workers finished controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild
Oct 1 10:34:40 INFO All workers finished controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository
Oct 1 10:34:40 INFO Stopping and waiting for caches
Oct 1 10:34:40 INFO Stopping and waiting for webhooks
Oct 1 10:34:40 INFO Stopping and waiting for HTTP servers
Oct 1 10:34:40 INFO Wait completed, proceeding to shutdown the manager
########################### Finished Creating IDP Successfully! ############################
Can Access ArgoCD at https://cnoe.localtest.me:8443/argocd
Username: admin
Password can be retrieved by running: idpbuilder get secrets -p argocd
ArgoCD applications
When running idpbuilder 'barely' (without package option) you get the 'core applications' deployed in your cluster:
stl@ubuntu-vpn:~/git/mms/ipceicis-developerframework$ k get applications -A
NAMESPACE NAME SYNC STATUS HEALTH STATUS
argocd argocd Synced Healthy
argocd gitea Synced Healthy
argocd nginx Synced Healthy
ArgoCD UI

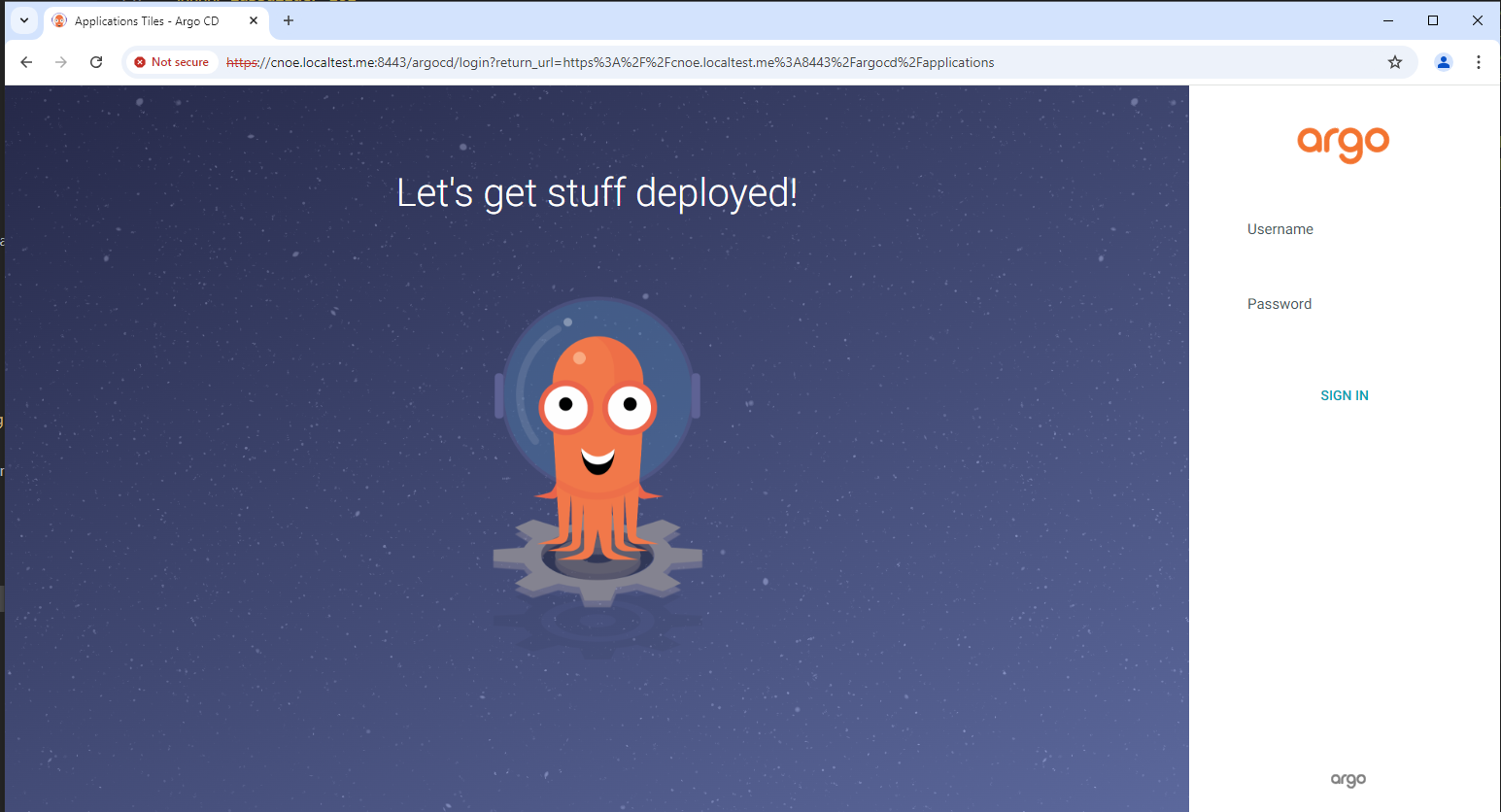

Open ArgoCD locally:
https://cnoe.localtest.me:8443/argocd
Next find the provided credentials for ArgoCD (here: argocd-initial-admin-secret):
stl@ubuntu-vpn:~/git/mms/idpbuilder$ ib get secrets
---------------------------
Name: argocd-initial-admin-secret
Namespace: argocd
Data:
password : 2MoMeW30wSC9EraF
username : admin
---------------------------
Name: gitea-credential
Namespace: gitea
Data:
password : LI$T?o>N{-<|{^dm$eTg*gni1(2:Y0@q344yqQIS
username : giteaAdmin

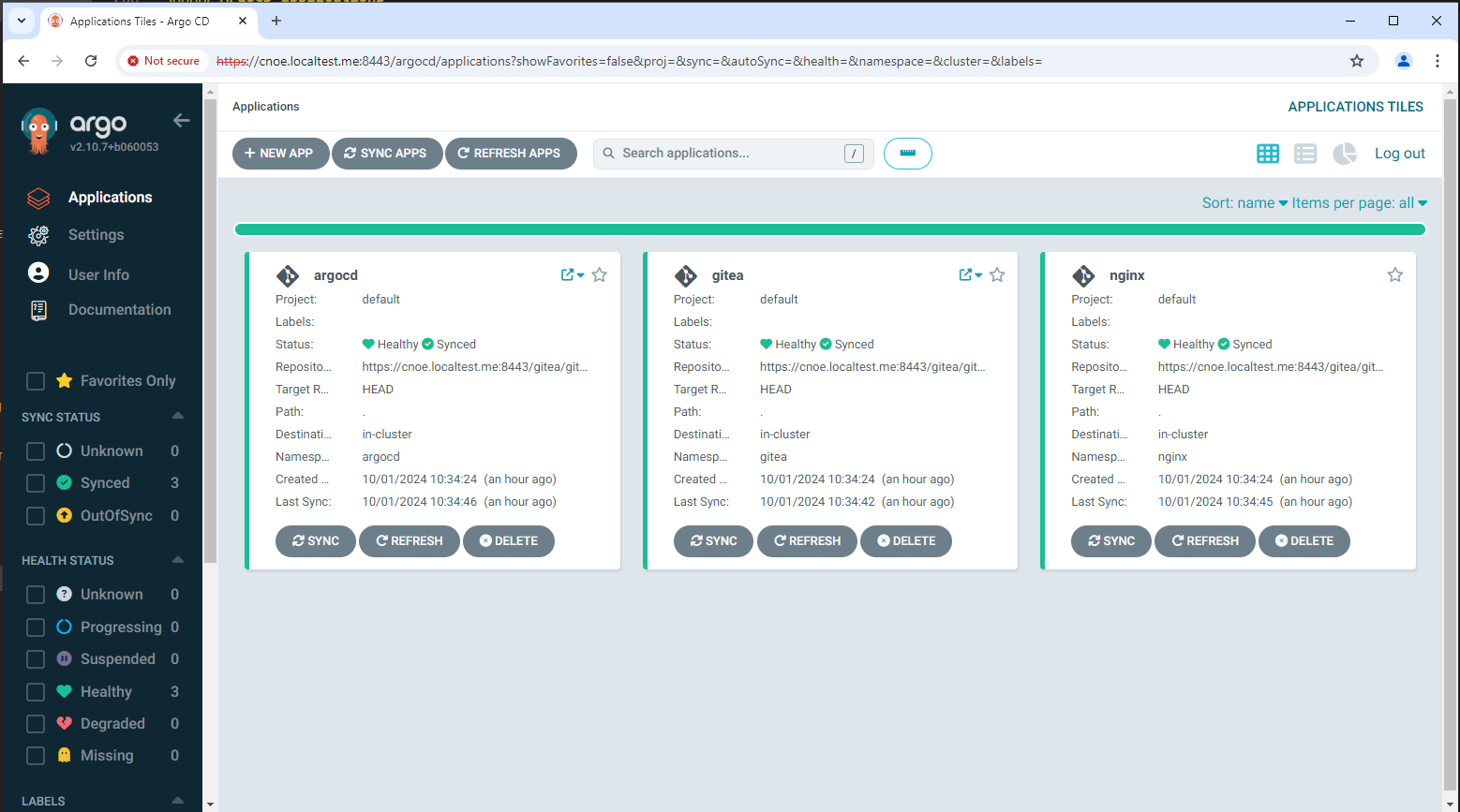

In ArgoCD you will see the deployed three applications of the core package:
Second run: Append 'package1' from the CNOE-stacks repo
CNOE provides example packages in https://github.com/cnoe-io/stacks.git. Having cloned this repo you can locally refer to theses packages:
stl@ubuntu-vpn:~/git/mms/cnoe-stacks$ git remote -v
origin https://github.com/cnoe-io/stacks.git (fetch)
origin https://github.com/cnoe-io/stacks.git (push)
stl@ubuntu-vpn:~/git/mms/cnoe-stacks$ ls -al
total 64
drwxr-xr-x 12 stl stl 4096 Sep 28 13:55 .
drwxr-xr-x 26 stl stl 4096 Sep 30 11:53 ..
drwxr-xr-x 8 stl stl 4096 Sep 28 13:56 .git
drwxr-xr-x 4 stl stl 4096 Jul 29 10:57 .github
-rw-r--r-- 1 stl stl 11341 Sep 28 09:12 LICENSE
-rw-r--r-- 1 stl stl 1079 Sep 28 13:55 README.md
drwxr-xr-x 4 stl stl 4096 Jul 29 10:57 basic
drwxr-xr-x 4 stl stl 4096 Sep 14 15:54 crossplane-integrations
drwxr-xr-x 3 stl stl 4096 Aug 13 14:52 dapr-integration
drwxr-xr-x 3 stl stl 4096 Sep 14 15:54 jupyterhub
drwxr-xr-x 6 stl stl 4096 Aug 16 14:36 local-backup
drwxr-xr-x 3 stl stl 4096 Aug 16 14:36 localstack-integration
drwxr-xr-x 8 stl stl 4096 Sep 28 13:02 ref-implementation
drwxr-xr-x 2 stl stl 4096 Aug 16 14:36 terraform-integrations
stl@ubuntu-vpn:~/git/mms/cnoe-stacks$ ls -al basic/
total 20
drwxr-xr-x 4 stl stl 4096 Jul 29 10:57 .
drwxr-xr-x 12 stl stl 4096 Sep 28 13:55 ..
-rw-r--r-- 1 stl stl 632 Jul 29 10:57 README.md
drwxr-xr-x 3 stl stl 4096 Jul 29 10:57 package1
drwxr-xr-x 2 stl stl 4096 Jul 29 10:57 package2
stl@ubuntu-vpn:~/git/mms/cnoe-stacks$ ls -al basic/package1
total 16
drwxr-xr-x 3 stl stl 4096 Jul 29 10:57 .
drwxr-xr-x 4 stl stl 4096 Jul 29 10:57 ..
-rw-r--r-- 1 stl stl 655 Jul 29 10:57 app.yaml
drwxr-xr-x 2 stl stl 4096 Jul 29 10:57 manifests
stl@ubuntu-vpn:~/git/mms/cnoe-stacks$ ls -al basic/package2
total 16
drwxr-xr-x 2 stl stl 4096 Jul 29 10:57 .
drwxr-xr-x 4 stl stl 4096 Jul 29 10:57 ..
-rw-r--r-- 1 stl stl 498 Jul 29 10:57 app.yaml
-rw-r--r-- 1 stl stl 500 Jul 29 10:57 app2.yaml
Output

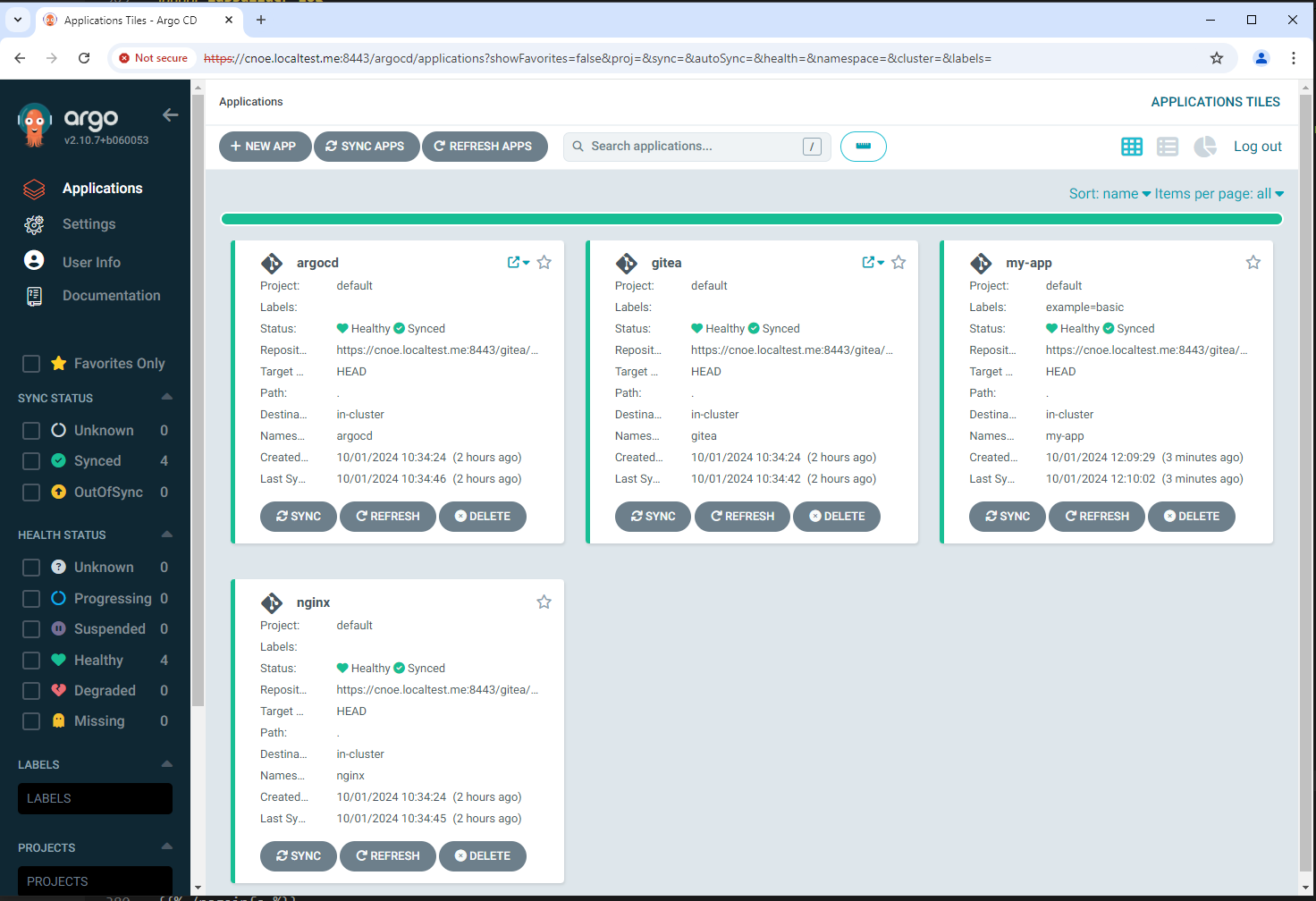

Now we run idpbuilder the second time with -p basic/package1
idpbuilder log
stl@ubuntu-vpn:~/git/mms/cnoe-stacks$ ib create --use-path-routing -p basic/package1
Oct 1 12:09:27 INFO Creating kind cluster logger=setup
Oct 1 12:09:27 INFO Runtime detected logger=setup provider=docker
Oct 1 12:09:27 INFO Cluster already exists logger=setup cluster=localdev
Oct 1 12:09:28 INFO Adding CRDs to the cluster logger=setup
Oct 1 12:09:28 INFO Setting up CoreDNS logger=setup
Oct 1 12:09:28 INFO Setting up TLS certificate logger=setup
Oct 1 12:09:28 INFO Creating localbuild resource logger=setup
Oct 1 12:09:28 INFO Starting EventSource controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild source=kind source: *v1alpha1.Localbuild
Oct 1 12:09:28 INFO Starting Controller controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild
Oct 1 12:09:28 INFO Starting EventSource controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage source=kind source: *v1alpha1.CustomPackage
Oct 1 12:09:28 INFO Starting Controller controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage
Oct 1 12:09:28 INFO Starting EventSource controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository source=kind source: *v1alpha1.GitRepository
Oct 1 12:09:28 INFO Starting Controller controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository
Oct 1 12:09:28 INFO Starting workers controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild worker count=1
Oct 1 12:09:28 INFO Starting workers controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository worker count=1
Oct 1 12:09:28 INFO Starting workers controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage worker count=1
Oct 1 12:09:29 INFO installing bootstrap apps to ArgoCD controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=0ed7ccc2-dec7-4ab8-909c-791a7d1b67a8
Oct 1 12:09:29 INFO unknown field "status.history[0].initiatedBy" logger=KubeAPIWarningLogger
Oct 1 12:09:29 INFO Checking if we should shutdown controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=0ed7ccc2-dec7-4ab8-909c-791a7d1b67a8
Oct 1 12:09:29 ERROR failed updating repo status controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage name=app-my-app namespace=idpbuilder-localdev namespace=idpbuilder-localdev name=app-my-app reconcileID=f9873560-5dcd-4e59-b6f7-ce5d1029ef3d err=Operation cannot be fulfilled on custompackages.idpbuilder.cnoe.io "app-my-app": the object has been modified; please apply your changes to the latest version and try again
Oct 1 12:09:29 ERROR Reconciler error controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage name=app-my-app namespace=idpbuilder-localdev namespace=idpbuilder-localdev name=app-my-app reconcileID=f9873560-5dcd-4e59-b6f7-ce5d1029ef3d err=updating argocd application object my-app: Operation cannot be fulfilled on applications.argoproj.io "my-app": the object has been modified; please apply your changes to the latest version and try again
Oct 1 12:09:31 INFO installing bootstrap apps to ArgoCD controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=531cc2d4-6250-493a-aca8-fecf048a608d
Oct 1 12:09:31 INFO Checking if we should shutdown controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=531cc2d4-6250-493a-aca8-fecf048a608d
Oct 1 12:09:44 INFO installing bootstrap apps to ArgoCD controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=022b9813-8708-4f4e-90d7-38f1e114c46f
Oct 1 12:09:44 INFO Checking if we should shutdown controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=022b9813-8708-4f4e-90d7-38f1e114c46f
Oct 1 12:10:00 INFO installing bootstrap apps to ArgoCD controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=79a85c21-42c1-41ec-ad03-2bb77aeae027
Oct 1 12:10:00 INFO Checking if we should shutdown controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=79a85c21-42c1-41ec-ad03-2bb77aeae027
Oct 1 12:10:00 INFO Shutting Down controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild name=localdev name=localdev reconcileID=79a85c21-42c1-41ec-ad03-2bb77aeae027
Oct 1 12:10:00 INFO Stopping and waiting for non leader election runnables
Oct 1 12:10:00 INFO Stopping and waiting for leader election runnables
Oct 1 12:10:00 INFO Shutdown signal received, waiting for all workers to finish controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage
Oct 1 12:10:00 INFO Shutdown signal received, waiting for all workers to finish controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository
Oct 1 12:10:00 INFO All workers finished controller=custompackage controllerGroup=idpbuilder.cnoe.io controllerKind=CustomPackage
Oct 1 12:10:00 INFO Shutdown signal received, waiting for all workers to finish controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild
Oct 1 12:10:00 INFO All workers finished controller=localbuild controllerGroup=idpbuilder.cnoe.io controllerKind=Localbuild
Oct 1 12:10:00 INFO All workers finished controller=gitrepository controllerGroup=idpbuilder.cnoe.io controllerKind=GitRepository
Oct 1 12:10:00 INFO Stopping and waiting for caches
Oct 1 12:10:00 INFO Stopping and waiting for webhooks
Oct 1 12:10:00 INFO Stopping and waiting for HTTP servers
Oct 1 12:10:00 INFO Wait completed, proceeding to shutdown the manager
########################### Finished Creating IDP Successfully! ############################
Can Access ArgoCD at https://cnoe.localtest.me:8443/argocd
Username: admin
Password can be retrieved by running: idpbuilder get secrets -p argocd
ArgoCD applications
Now we have additionally the 'my-app' deployed in the cluster:
stl@ubuntu-vpn:~$ k get applications -A
NAMESPACE NAME SYNC STATUS HEALTH STATUS
argocd argocd Synced Healthy
argocd gitea Synced Healthy
argocd my-app Synced Healthy
argocd nginx Synced Healthy
ArgoCD UI
Third run: Finally we append 'ref-implementation' from the CNOE-stacks repo
We finally append the so called 'reference-implementation', which provides a real basic IDP:
stl@ubuntu-vpn:~/git/mms/cnoe-stacks$ ib create --use-path-routing -p ref-implementation
ArgoCD applications
stl@ubuntu-vpn:~$ k get applications -A
NAMESPACE NAME SYNC STATUS HEALTH STATUS
argocd argo-workflows Synced Healthy
argocd argocd Synced Healthy
argocd backstage Synced Healthy
argocd included-backstage-templates Synced Healthy
argocd external-secrets Synced Healthy
argocd gitea Synced Healthy
argocd keycloak Synced Healthy
argocd metric-server Synced Healthy
argocd my-app Synced Healthy
argocd nginx Synced Healthy
argocd spark-operator Synced Healthy
ArgoCD UI
ArgoCD shows all provissioned applications:
Keycloak UI

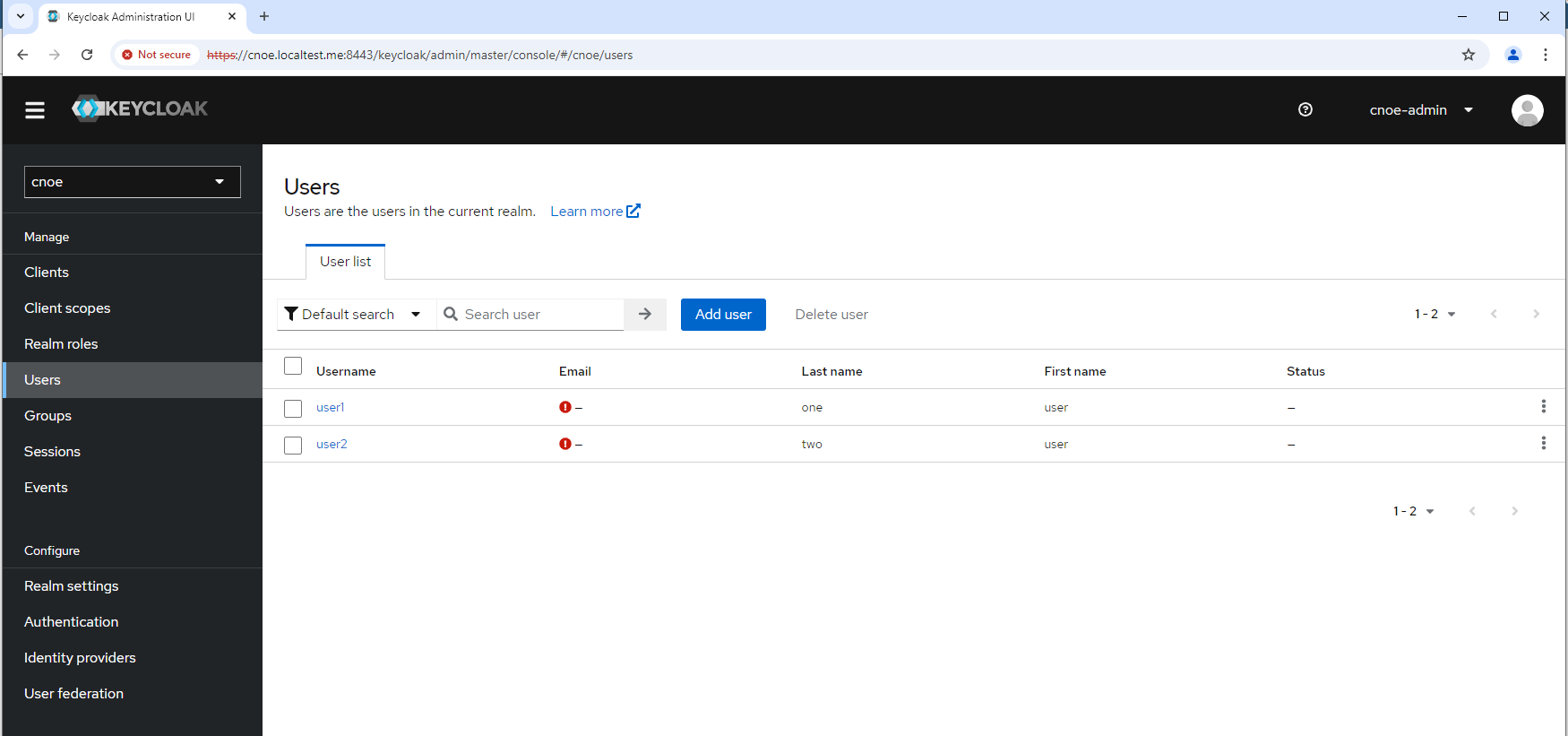

In our cluster there is also keycloak as IAM provisioned.

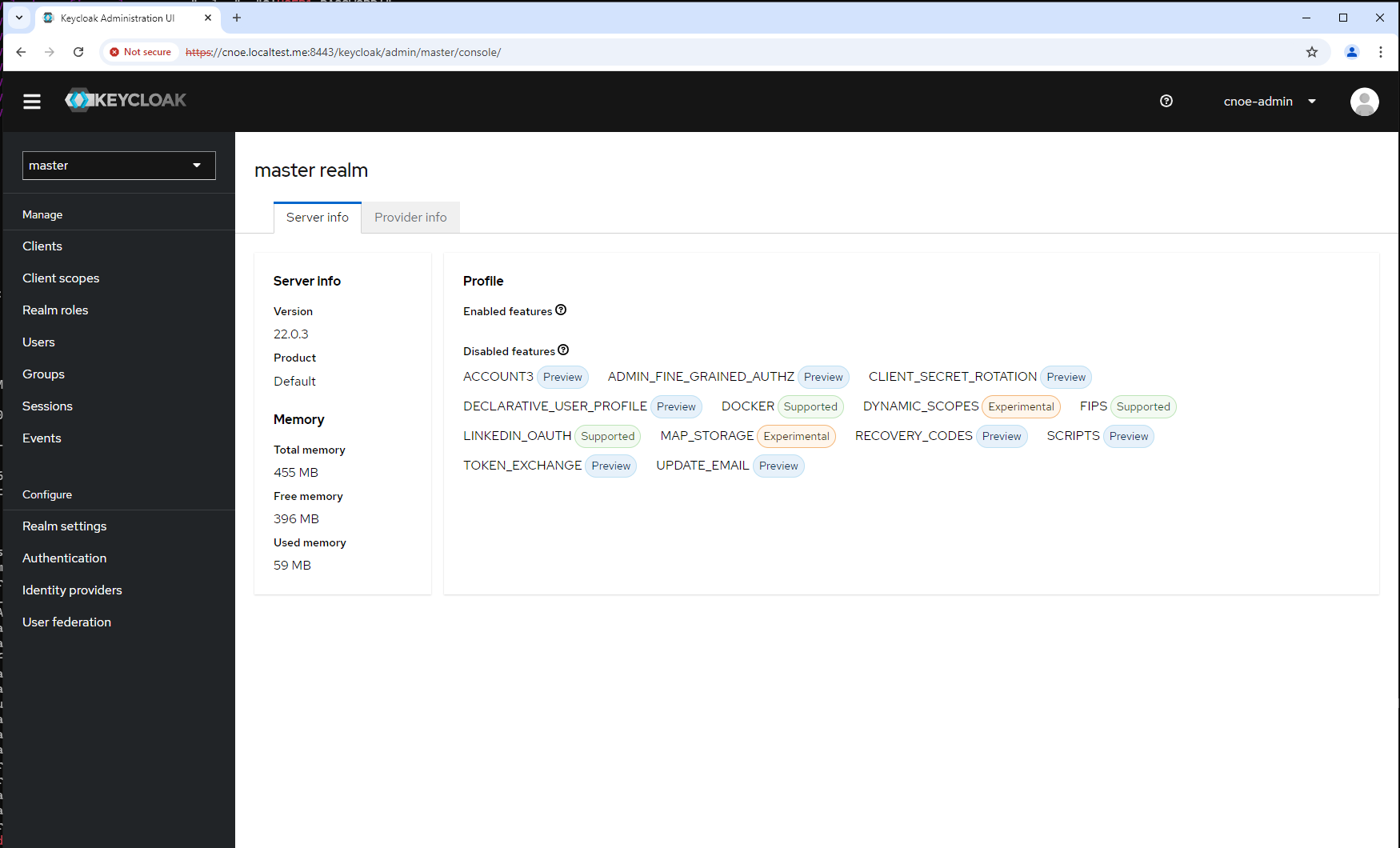

Login into Keycloak with 'cnoe-admin' and the KEYCLOAK_ADMIN_PASSWORD.
These credentails are defined in the package:
stl@ubuntu-vpn:~/git/mms/cnoe-stacks$ cat ref-implementation/keycloak/manifests/keycloak-config.yaml | grep -i admin
group-admin-payload.json: |
{"name":"admin"}
"/admin"
ADMIN_PASSWORD=$(cat /var/secrets/KEYCLOAK_ADMIN_PASSWORD)
--data-urlencode "username=cnoe-admin" \
--data-urlencode "password=${ADMIN_PASSWORD}" \
stl@ubuntu-vpn:~/git/mms/cnoe-stacks$ ib get secrets
---------------------------
Name: argocd-initial-admin-secret
Namespace: argocd
Data:
password : 2MoMeW30wSC9EraF
username : admin
---------------------------
Name: gitea-credential
Namespace: gitea
Data:
password : LI$T?o>N{-<|{^dm$eTg*gni1(2:Y0@q344yqQIS
username : giteaAdmin
---------------------------
Name: keycloak-config
Namespace: keycloak
Data:
KC_DB_PASSWORD : k3-1kgxxd/X2Cw//pX-uKMsmgWogEz5YGnb5
KC_DB_USERNAME : keycloak
KEYCLOAK_ADMIN_PASSWORD : zMSjv5eA0l/+0-MDAaaNe+rHRMrB2q0NssP-
POSTGRES_DB : keycloak
POSTGRES_PASSWORD : k3-1kgxxd/X2Cw//pX-uKMsmgWogEz5YGnb5
POSTGRES_USER : keycloak
USER_PASSWORD : Kd+0+/BqPRAvnLPZO-L2o/6DoBrzUeMsr29U
Backstage UI
As Backstage login you either can use the 'user1' with USER_PASSWORD : Kd+0+/BqPRAvnLPZO-L2o/6DoBrzUeMsr29U or you create a new user in keycloak

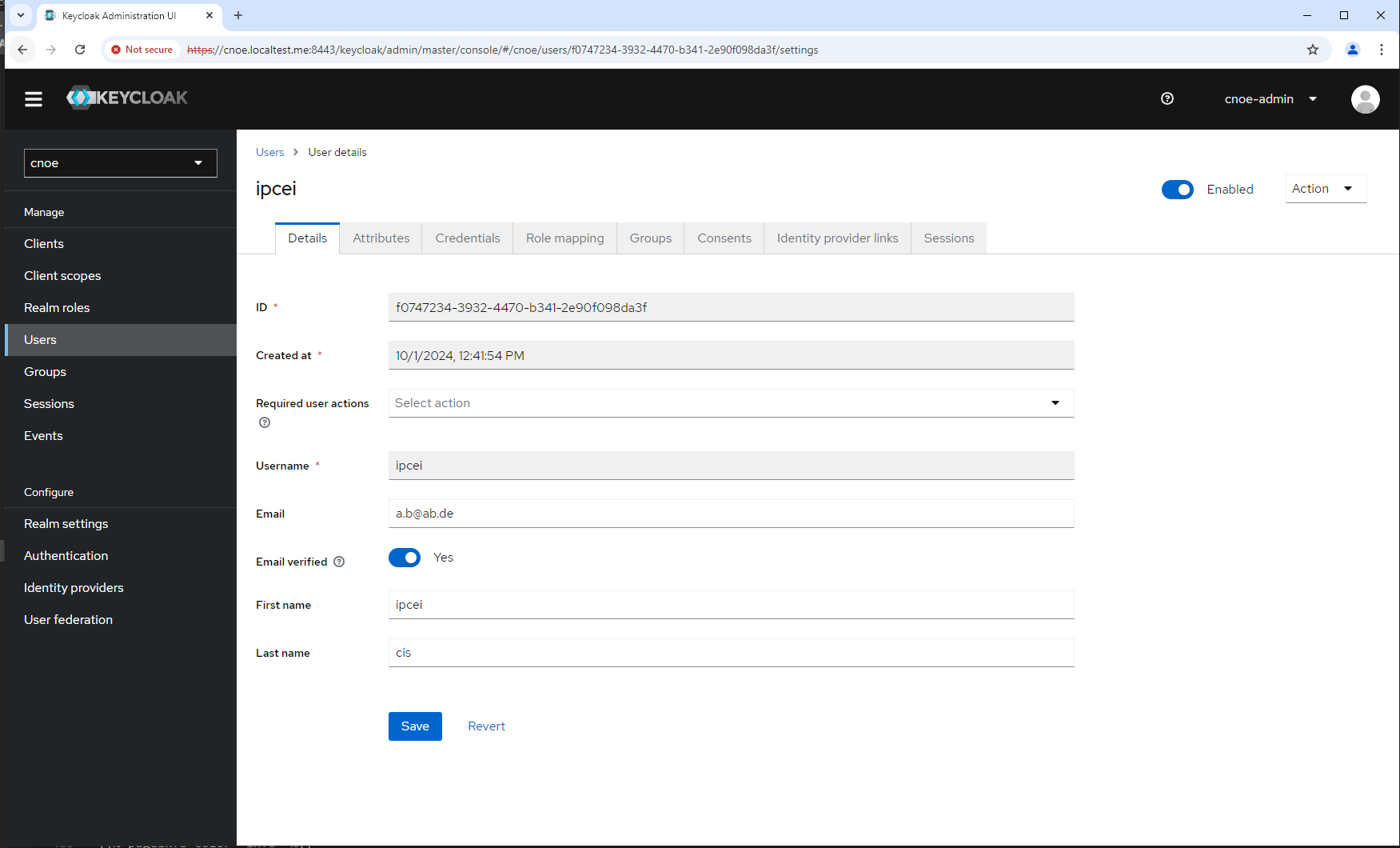

We create user 'ipcei' and also set a password (in tab 'Credentials'):

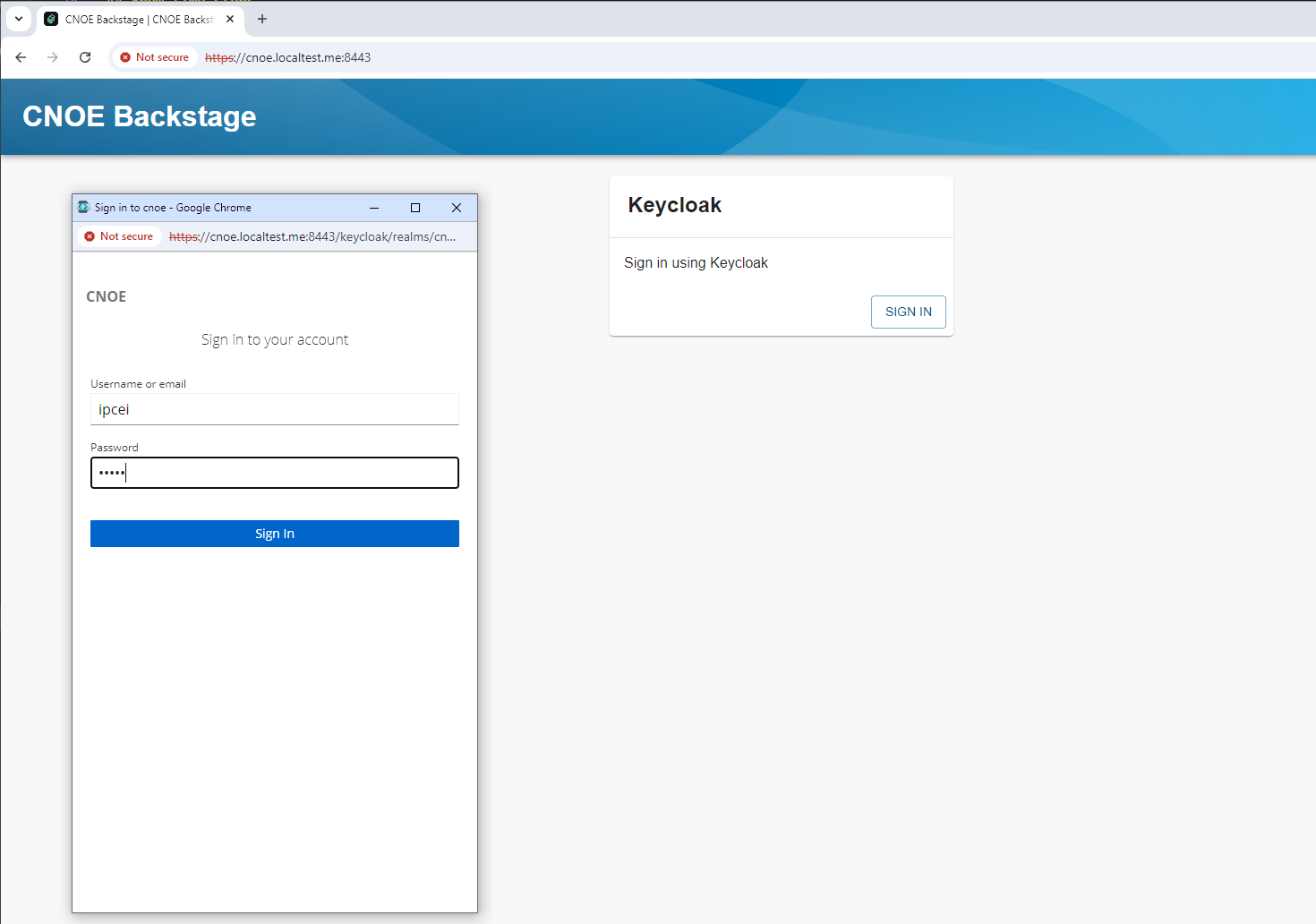

Now we can log into backstage (rember: you could have already existing usr 'user1'):
and see the basic setup of the Backstage portal:
Use a Golden Path: 'Basic Deployment'

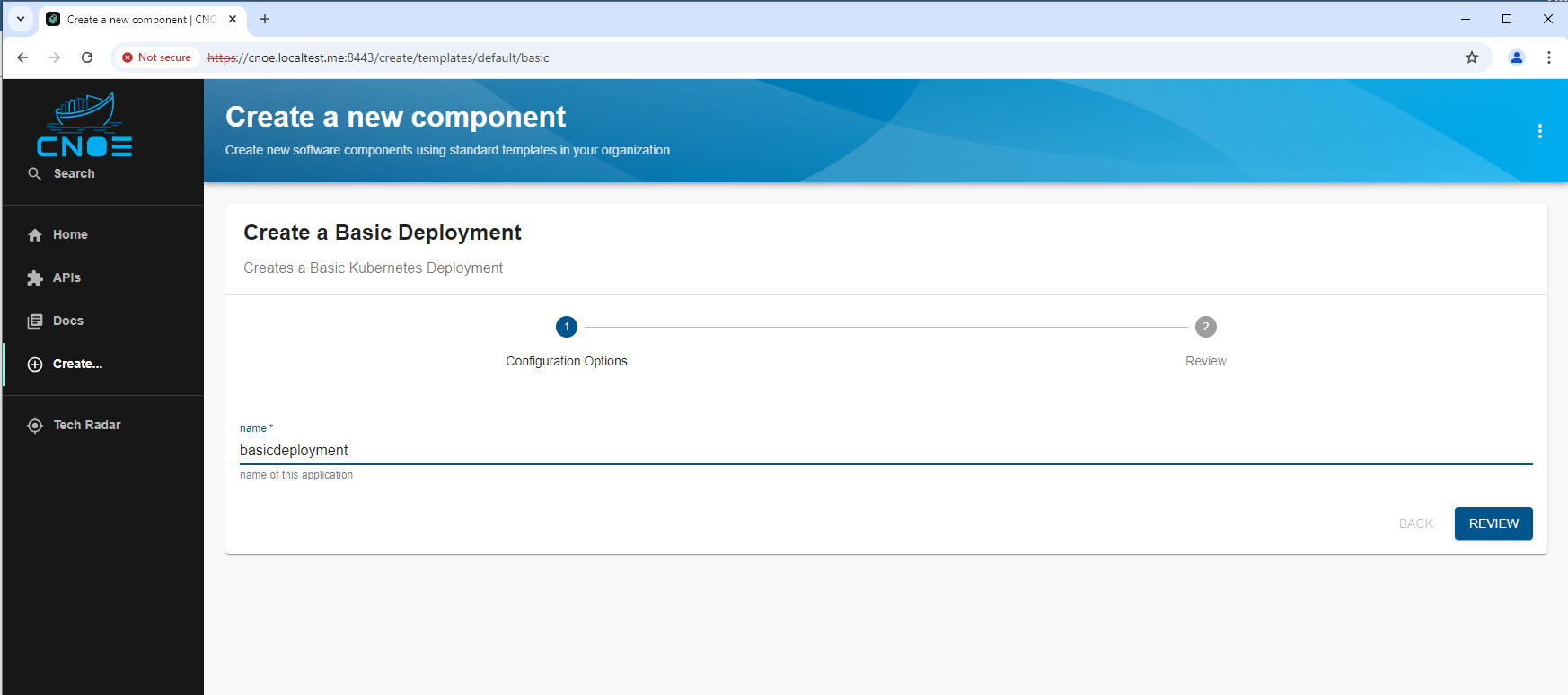

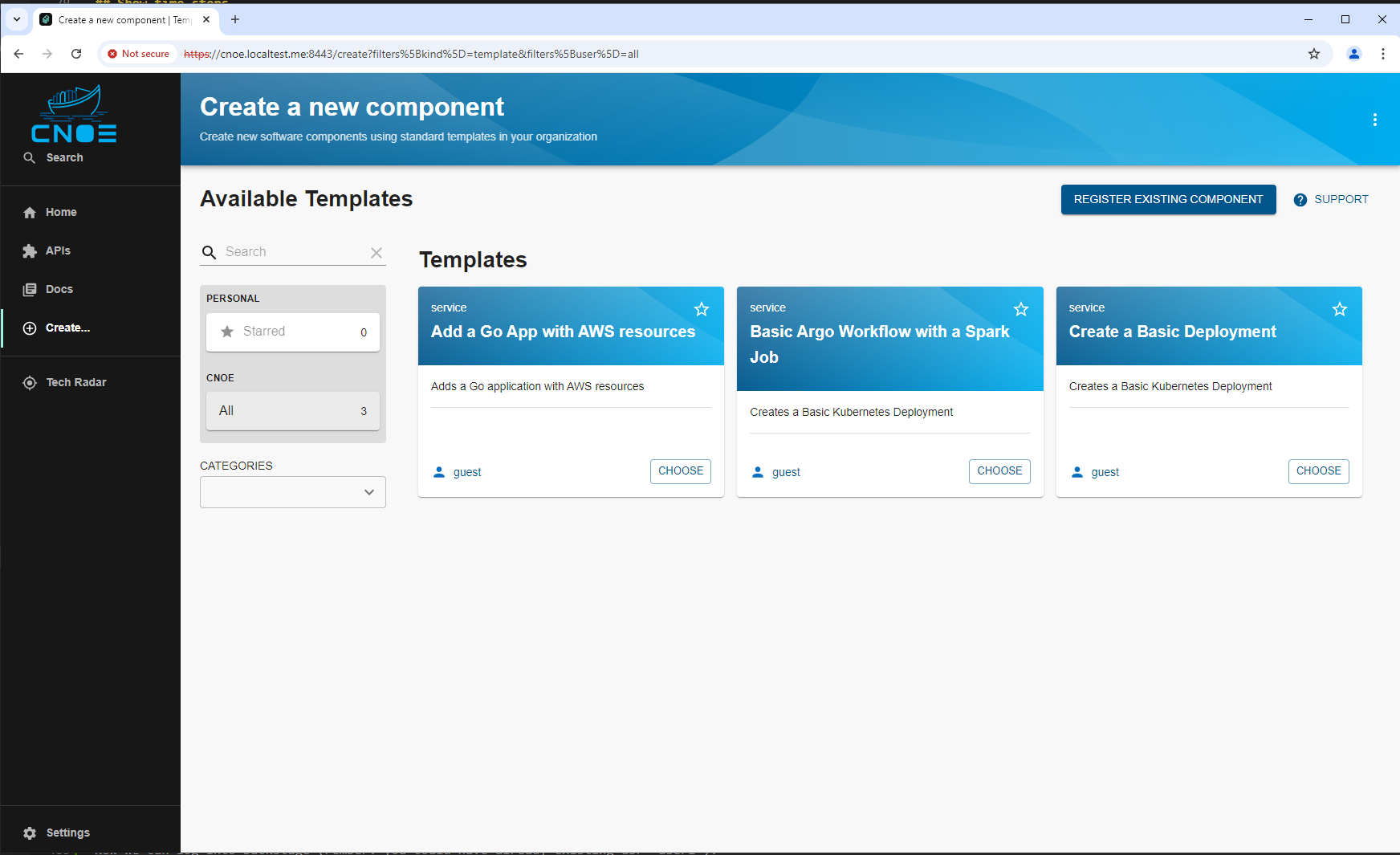

Now we want to use the Backstage portal as a developer. We create in Backstage our own platform based activity by using the golden path template 'Basic Deployment:

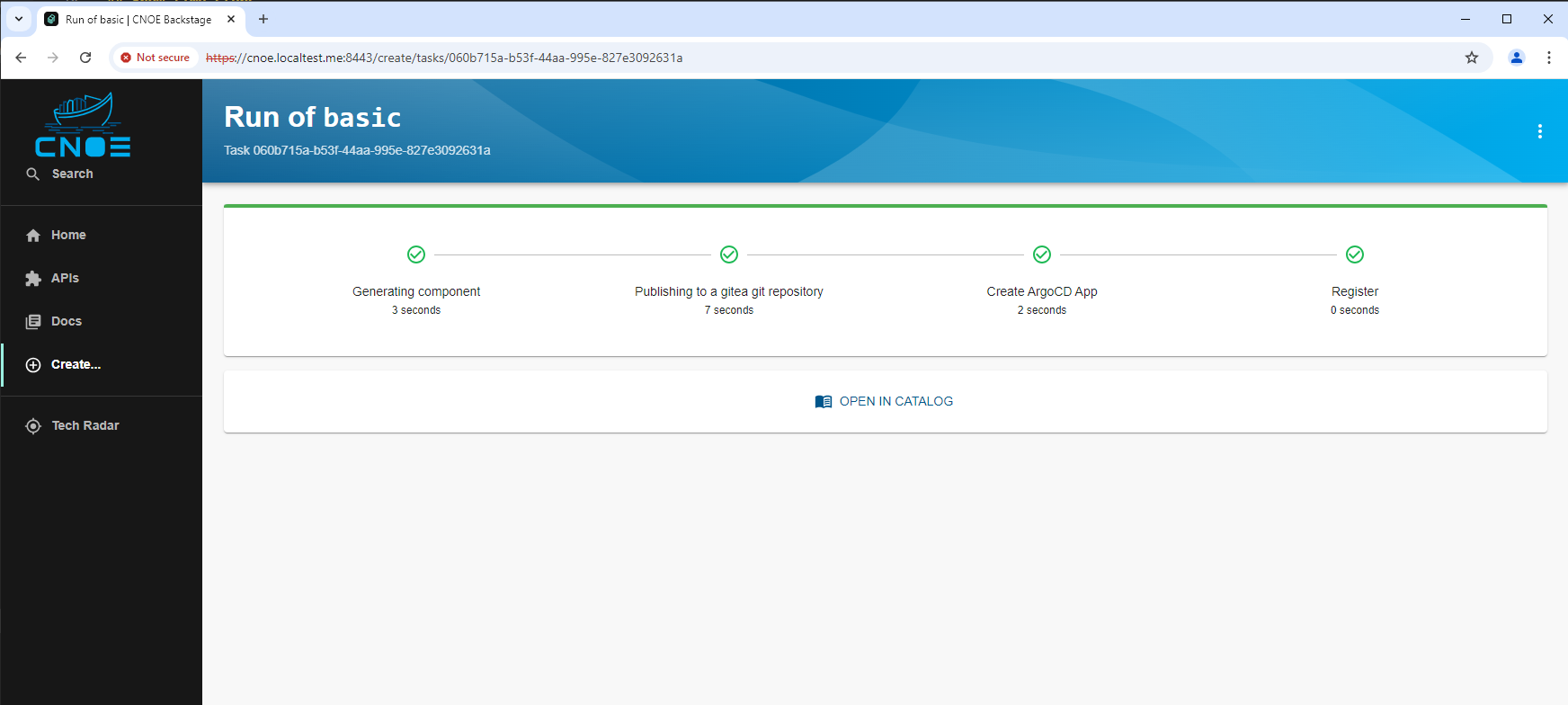

When we run it, we see 'golden path activities'

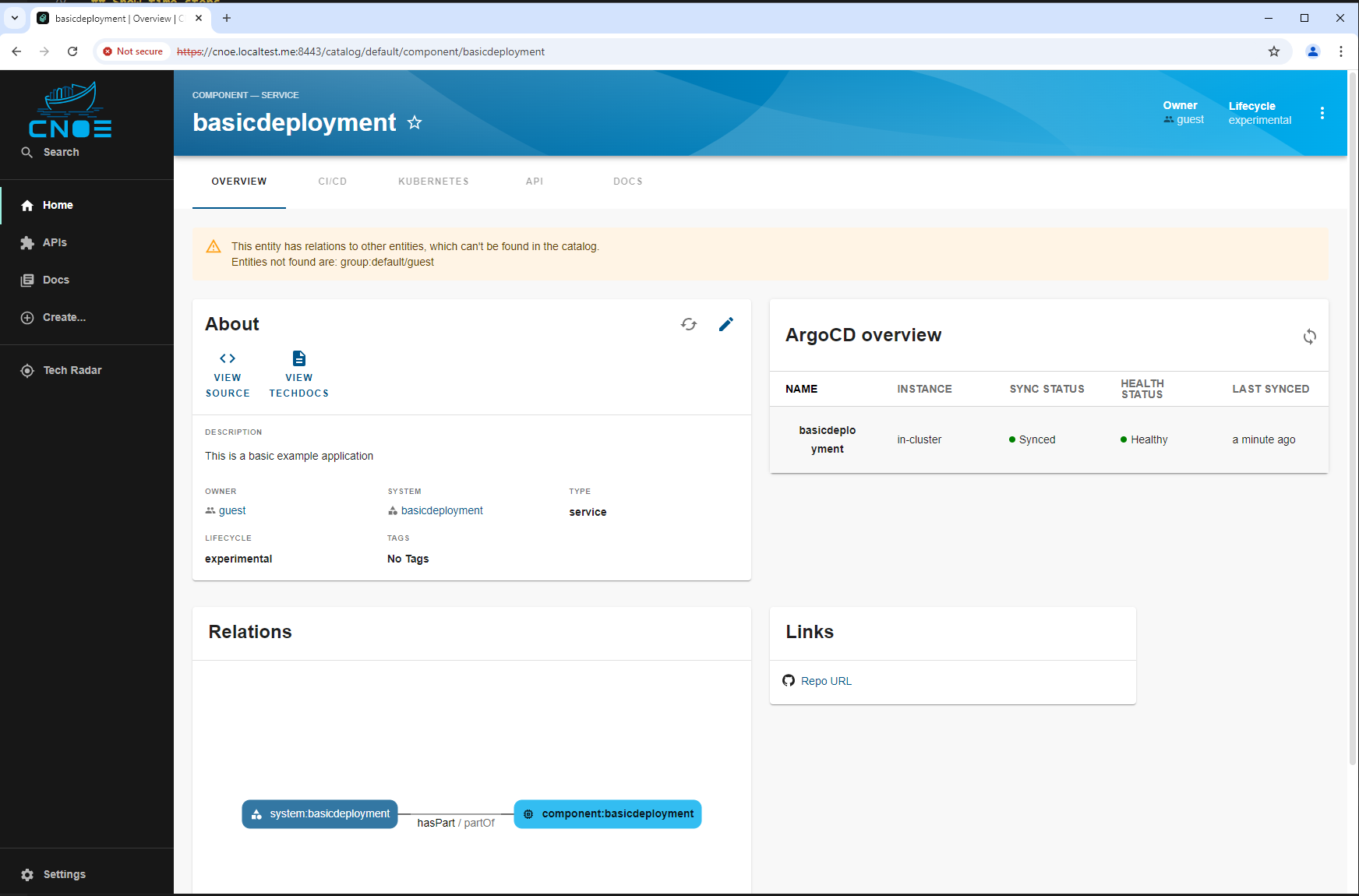

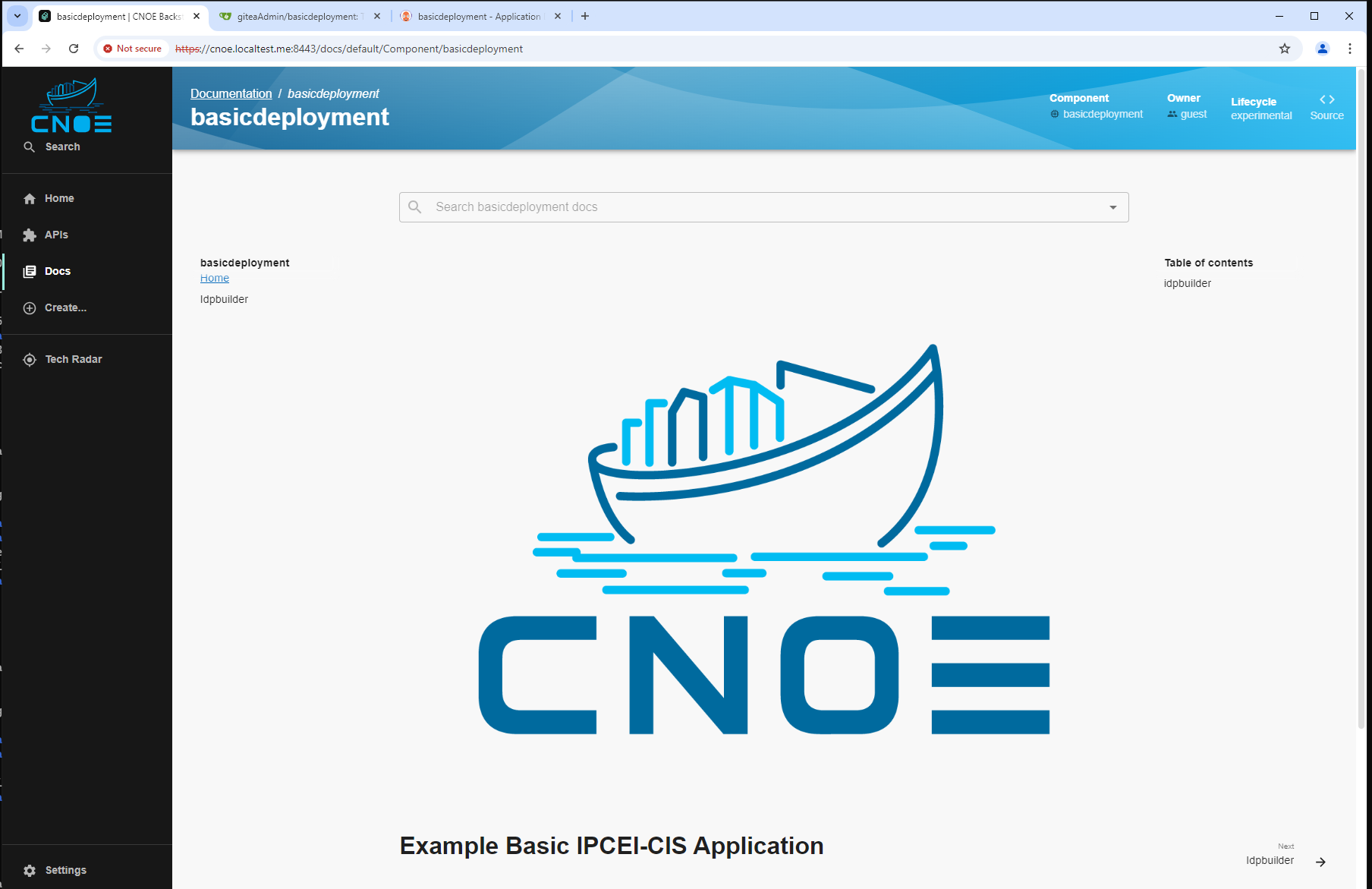

which finally result in a new catalogue entry:
Software development lifecycle

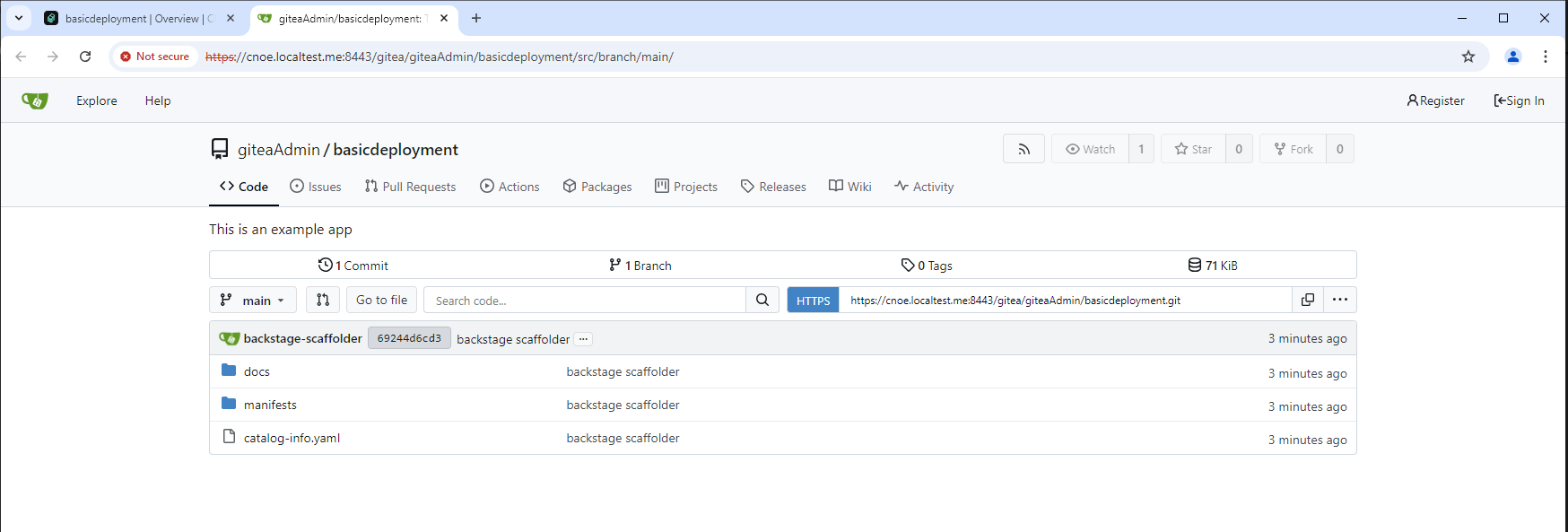

When we follow the 'view source' link we are directly linked to the git repo of our newly created application:
Check it out by cloning into a local git repo (watch the GIT_SSL_NO_VERIFY=true env setting):
stl@ubuntu-vpn:~/git/mms/idp-temporary$ GIT_SSL_NO_VERIFY=true git clone https://cnoe.localtest.me:8443/gitea/giteaAdmin/basicdeployment.git
Cloning into 'basicdeployment'...
remote: Enumerating objects: 10, done.
remote: Counting objects: 100% (10/10), done.
remote: Compressing objects: 100% (8/8), done.
remote: Total 10 (delta 0), reused 0 (delta 0), pack-reused 0 (from 0)
Receiving objects: 100% (10/10), 47.62 KiB | 23.81 MiB/s, done.
stl@ubuntu-vpn:~/git/mms/idp-temporary$ cd basicdeployment/
stl@ubuntu-vpn:~/git/mms/idp-temporary/basicdeployment$ ll
total 24
drwxr-xr-x 5 stl stl 4096 Oct 1 13:00 ./
drwxr-xr-x 4 stl stl 4096 Oct 1 13:00 ../
drwxr-xr-x 8 stl stl 4096 Oct 1 13:00 .git/
-rw-r--r-- 1 stl stl 928 Oct 1 13:00 catalog-info.yaml
drwxr-xr-x 3 stl stl 4096 Oct 1 13:00 docs/
drwxr-xr-x 2 stl stl 4096 Oct 1 13:00 manifests/
Edit and change
Change some things, like the decription and the replicas:
Push
Push your changes, use the giteaAdmin user to authenticate:
stl@ubuntu-vpn:~/git/mms/idp-temporary/basicdeployment$ ib get secrets
---------------------------
Name: argocd-initial-admin-secret
Namespace: argocd
Data:
password : 2MoMeW30wSC9EraF
username : admin
---------------------------
Name: gitea-credential
Namespace: gitea
Data:
password : LI$T?o>N{-<|{^dm$eTg*gni1(2:Y0@q344yqQIS
username : giteaAdmin
---------------------------
Name: keycloak-config
Namespace: keycloak
Data:
KC_DB_PASSWORD : k3-1kgxxd/X2Cw//pX-uKMsmgWogEz5YGnb5
KC_DB_USERNAME : keycloak
KEYCLOAK_ADMIN_PASSWORD : zMSjv5eA0l/+0-MDAaaNe+rHRMrB2q0NssP-
POSTGRES_DB : keycloak
POSTGRES_PASSWORD : k3-1kgxxd/X2Cw//pX-uKMsmgWogEz5YGnb5
POSTGRES_USER : keycloak
USER_PASSWORD : Kd+0+/BqPRAvnLPZO-L2o/6DoBrzUeMsr29U
stl@ubuntu-vpn:~/git/mms/idp-temporary/basicdeployment$ GIT_SSL_NO_VERIFY=true git push
Username for 'https://cnoe.localtest.me:8443': giteaAdmin
Password for 'https://giteaAdmin@cnoe.localtest.me:8443':
Enumerating objects: 5, done.
Counting objects: 100% (5/5), done.
Delta compression using up to 8 threads
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 382 bytes | 382.00 KiB/s, done.
Total 3 (delta 1), reused 0 (delta 0), pack-reused 0
remote: . Processing 1 references
remote: Processed 1 references in total
To https://cnoe.localtest.me:8443/gitea/giteaAdmin/basicdeployment.git
69244d6..1269617 main -> main
Wait for gitops magic: deployment into the 'production' cluster
Next wait a bit until Gitops does its magic and our 'wanted' state in the repo gets automatically deployed to the 'production' cluster:
{{% pageinfo color="info" %}}
What comes next?
The showtime of CNOE high level behaviour and usage scenarios is now finished. We setup an initial IDP and used a backstage golden path to init and deploy a simple application.
Last not least we want to sum up the whole way from Devops to 'Frameworking' (is this the correct wording???) {{% /pageinfo %}}
